Welcome to know our airport perimeter runway light
Key Features
✓Stainless steel construction better resists salt, chemicals, and weather exposure
✓Nitric acid passivated to maximize the essential corrosion resistance
✓Recessed mounted, allows for obstruction-free movement of equipment and personnel
✓Fixture sealed to the bottom cover to prevent moisture intrusion
✓Prism removal and replacement achieved without need for adhesives or sealants
✓Cost-saving, energy-efficient LEDs
✓Low maintenance - LED light source has 50,000 hour lifetime
✓Monochromatic output of LEDs is more conspicuous than halogen
✓Available for non-heliport applications such as architectural lighting
✓Available for dimmable type
General Information
| Name | LED runway light |
| Standard | ICAO |
| Light Intensity | 55CD |
| Working Mode | Steady-Burning |
| Light Source | LED |
| Service Life Of LED | ≥100,000 Hours |
| Operating Voltage | AC220V (Optional: DC48V, AC110V, AC120V) |
| Power Consumption | 10W |
| Overall Size | 194mm(D)×140mm(H) |
| Installation Size | 199mm×145mm |
| Material | Base: Die-casting Aluminum |
| Weight | 4.5Kg |
| Emitting Color | Green, Yellow |
| Ambient Temperature | -20℃~60℃ |
| Wind Load | 80m/s |
| Protection Standard | IP67 |

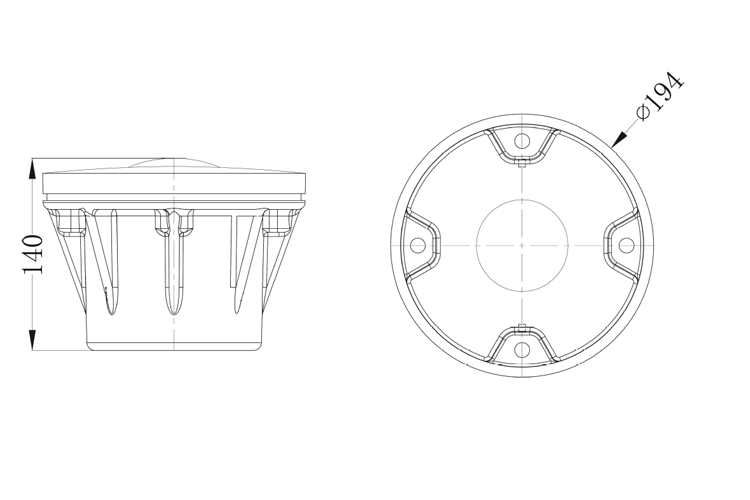

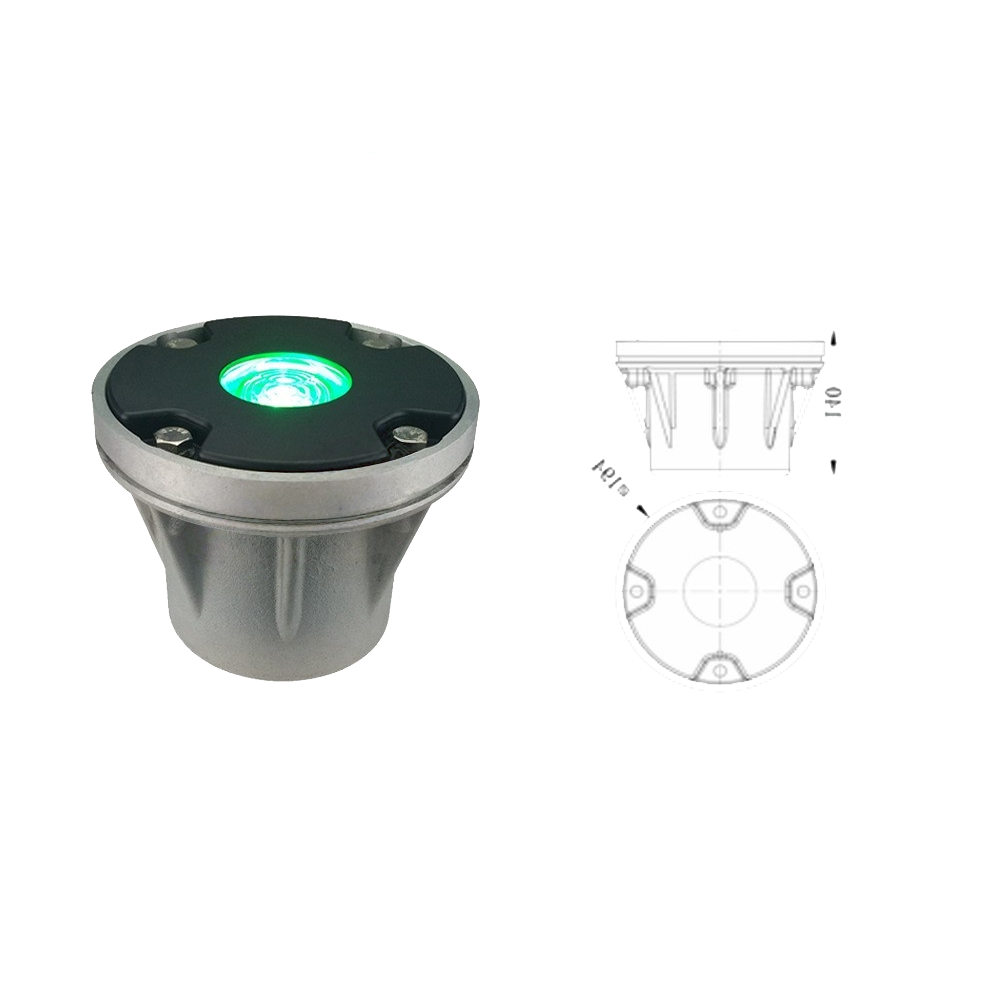

Dimension
Frequently Asked Questions
1. What is the expected lifespan of the LED light source?
The high-efficiency LED light source is designed for long-term use with a service life of ≥100,000 hours, significantly reducing maintenance costs.
2. Is the runway light resistant to harsh weather and corrosion?
Yes, the fixture features stainless steel construction and is nitric acid passivated to maximize corrosion resistance against salt and chemicals. It also carries an IP67 protection rating.
3. What are the available power supply options?
The standard operating voltage is AC220V, but we also offer optional configurations for DC48V, AC110V, and AC120V to suit different infrastructure requirements.
4. Can the light be used for architectural purposes?

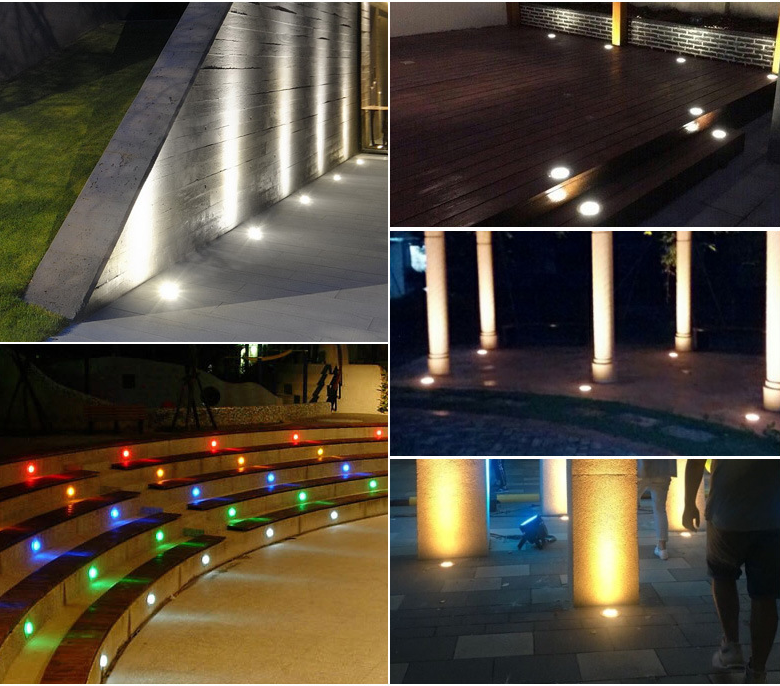

Absolutely. While designed for airport and helipad perimeter use, these inset lights are also suitable for architectural lighting and other non-heliport applications.
5. Is the installation obstruction-free for airport equipment?
Yes, the recessed (inset) mounting design allows for the smooth and obstruction-free movement of ground equipment and personnel across the surface.
6. Does the light support dimming functionality?
Yes, this model is available in a dimmable type to allow for light intensity adjustment according to specific operational needs.
