LED Solar Powered Runway Edge Light White Solar Airport Lighting, Solar Power Heliport Light

Product Description

Product Description

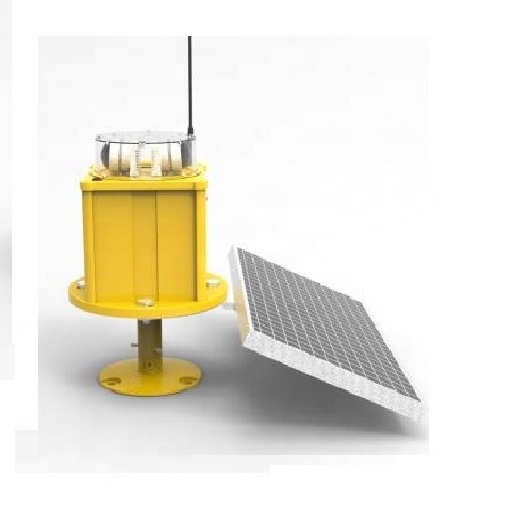

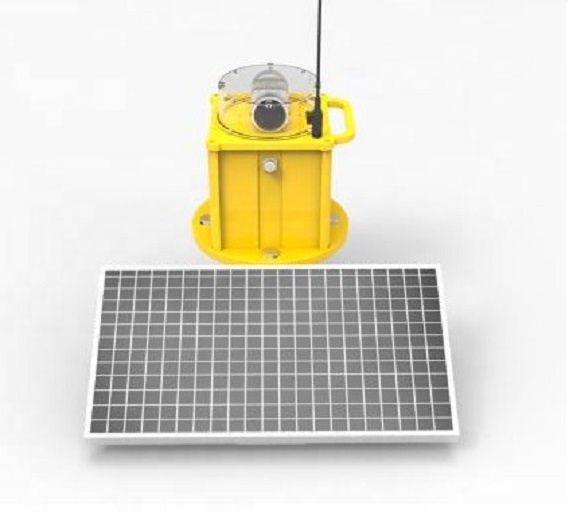

Solar Powered Runway Edge Light

LED Solar Powered Runway Edge Light

The AH-SA-S3 is a medium intensity light featuring combined optics (bi- and omnidirectional). It is specifically designed for permanent usage at Non-Precision Runways, particularly in regions without access to electricity but with high photovoltaic potential. The integrated solar power system is engineered to operate 365 days a year purely on solar energy.

Technical Features & Compliance

📜
Compliance: ICAO Annex 14 Vol. I (7th. Edition, July 2016), CAP 437
Electrical: High-efficiency LED source saving 95% more power than equivalent incandescent lights.
🛡️
Physical: Integrated rugged design, IP67 waterproof (capable of deep immersion). PC housing with UV resistance, shockproof, and corrosion-proof powder-coated die-casting aluminum base.
📡
System Design: Features ON/OFF button interface and wireless remote control.
⚙️
Optional Functions: External battery charger, NVG-compatible infrared (IR) LED, Pilot-to-ground VHF radio control.

Product Specifications

Item Value
Warranty 1-year
Light Source LED (Lifespan 100,000 hours)
Input Voltage DC 12V
Color Temperature White
IP Rating IP65/IP67
Body Material Aluminum Alloy + PC
Solar Module Mono-crystalline Silicon
Battery Life Average 5 years
Weight 10kg
Operation Mode Wireless remote controlled ON/OFF

Applications

Ideal for Airport runways, Touchdown and Lift-off areas (TLOF), Final Approach and Take-off areas (FATO), Taxiway lighting, Threshold lighting, and Helipads. It is also suitable for emergency operations and portable airfield lighting setups.

Factory & Production

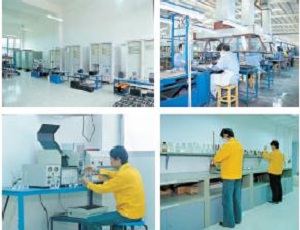

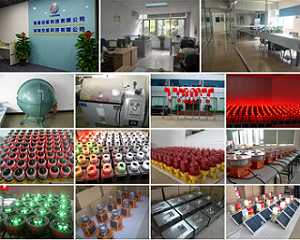

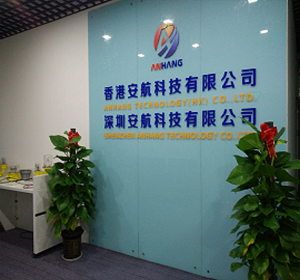

Production Facility 1 Production Facility 2 Production Facility 3

Industry Overview

As a high-technology enterprise, we focus on the research, development, and production of Aviation Obstruction Lights, Helipad Lights, and LED Marine Lanterns. All products are designed strictly according to ICAO, FAA, and IALA standards. Our mission is to provide green, energy-saving LED solutions that replace traditional xenon or incandescent lamps, serving global markets including Civil Airports, Communication Towers, and high-rise structures.

Packing & Delivery

📦
Standard Paper carton: 1 piece per box.
🚚
Delivery Time: 3-15 days depending on order quantity.

Frequently Asked Questions

🔵 Can these lights work without direct electricity?
Yes, these are solar-powered units equipped with high-efficiency mono-crystalline silicon solar modules, designed to operate 365 days a year on solar energy.
🔵 What standards do these aviation lights comply with?
Our lights are designed and manufactured strictly according to ICAO (International Civil Aviation Organization) and FAA (Federal Aviation Administration) regulations.
🔵 Are the lights suitable for harsh marine environments?
Absolutely. With an IP67 waterproof rating, UV-resistant PC housing, and corrosion-proof aluminum base, they are built to withstand salt spray and prolonged immersion.
🔵 How are the lights controlled?
The system features an integrated ON/OFF interface and can be operated via a wireless remote control. Optional VHF radio control for pilot-to-ground operation is also available.
🔵 What is the expected lifespan of the product?
The LED light source has a lifespan of approximately 100,000 hours, and the internal battery has an average service life of 5 years.
🔵 What are the main applications for these lights?
They are primarily used for airport runways, taxiways, helipad TLOF/FATO areas, and emergency airfield lighting.
