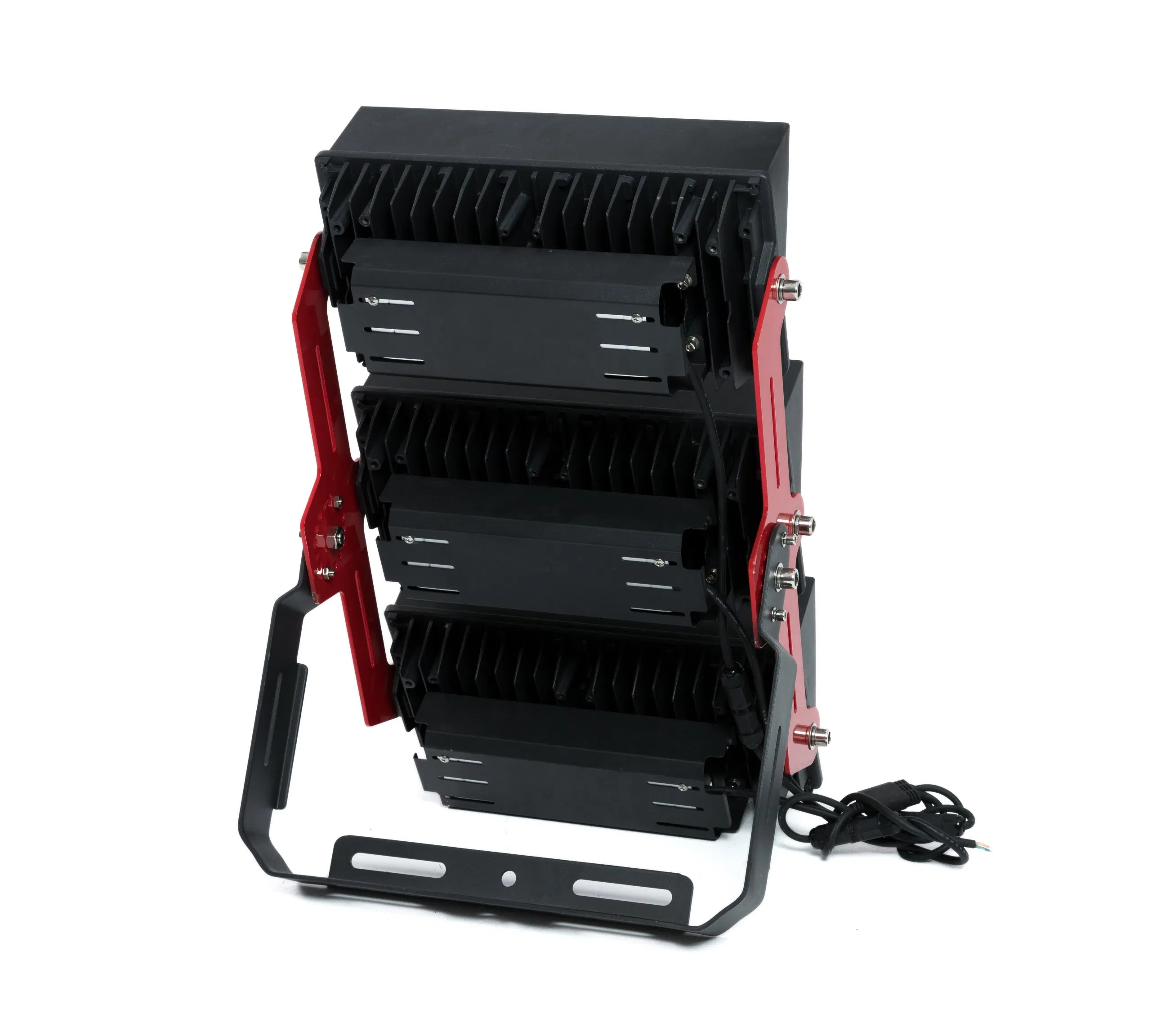

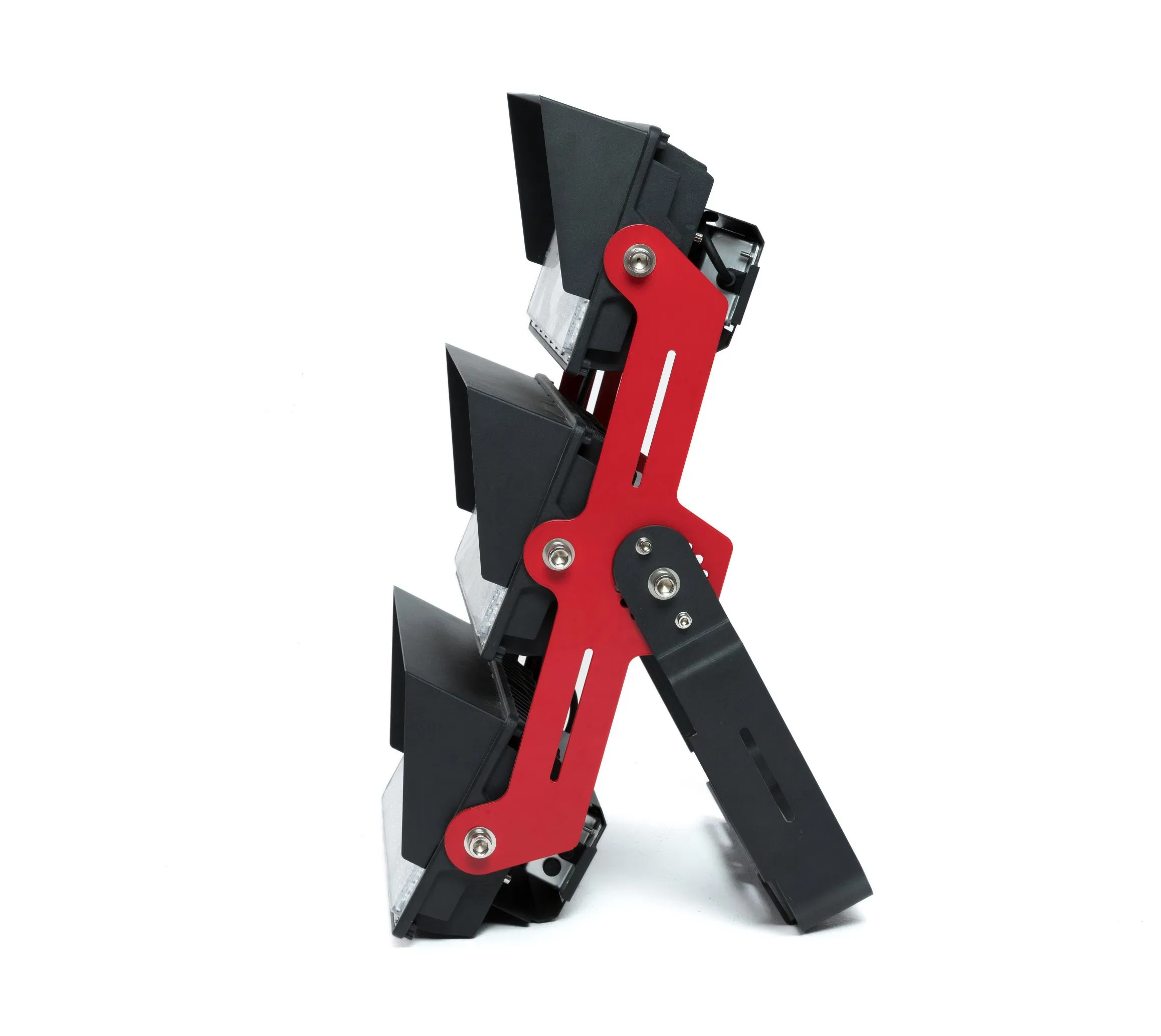

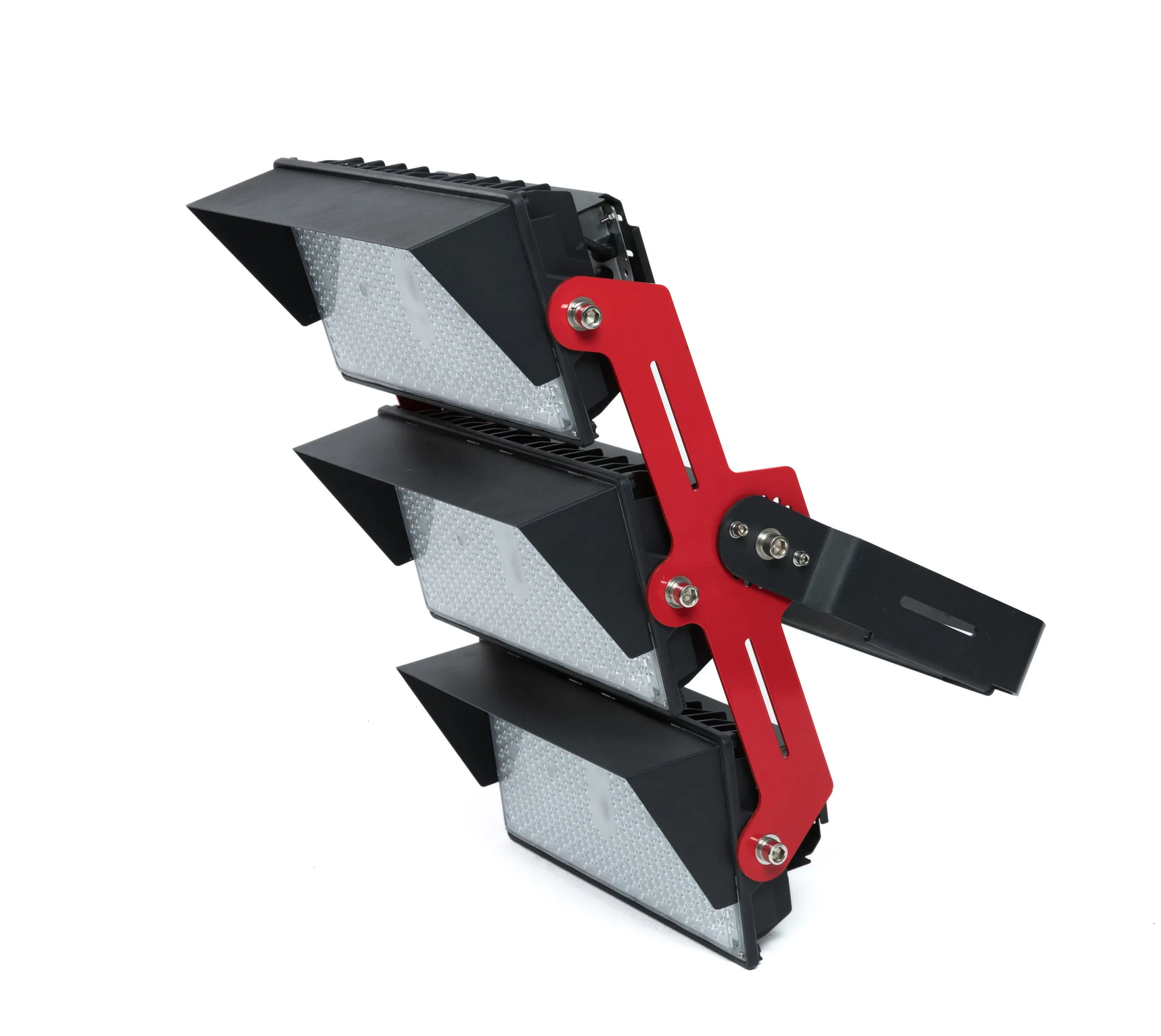

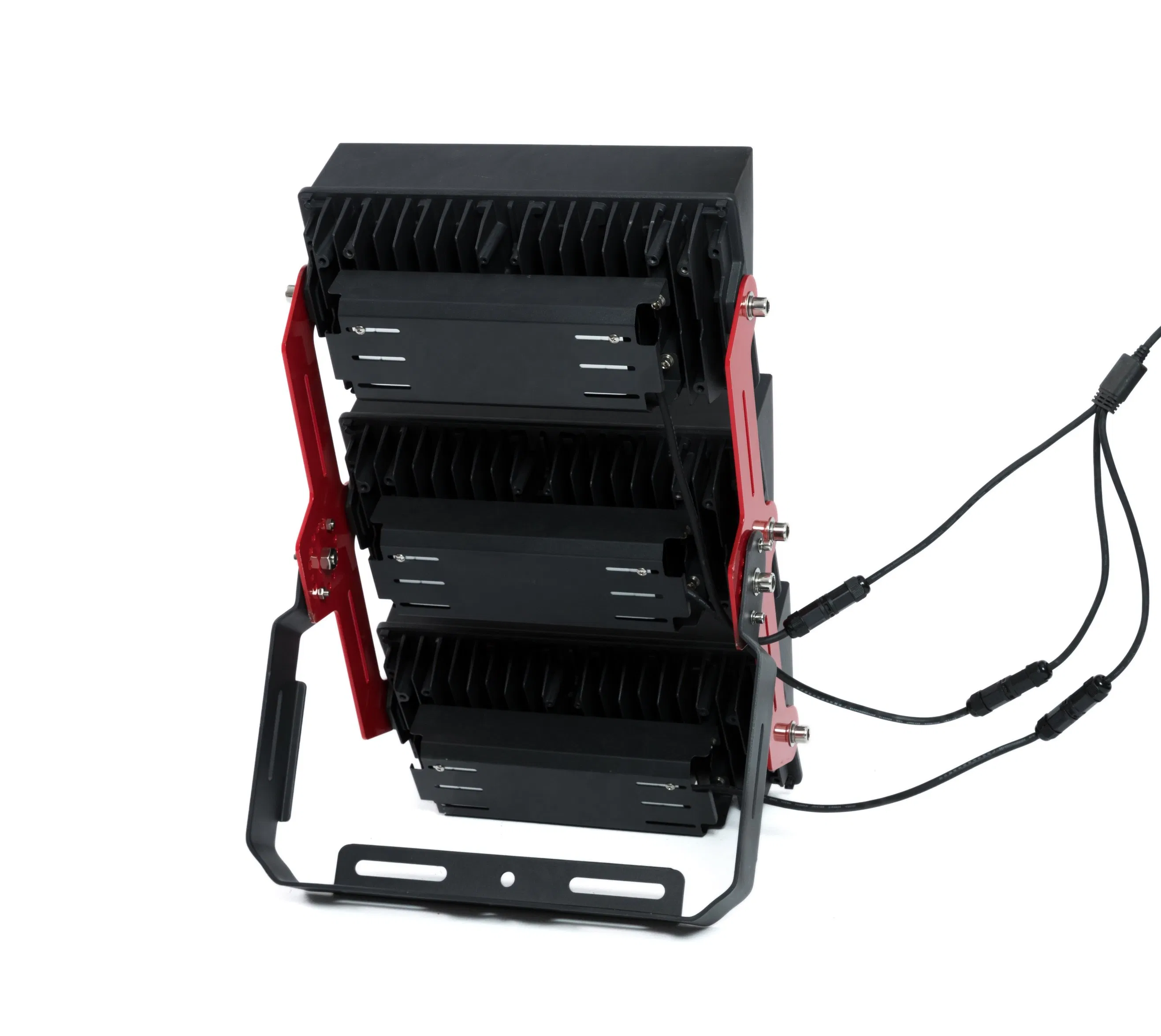

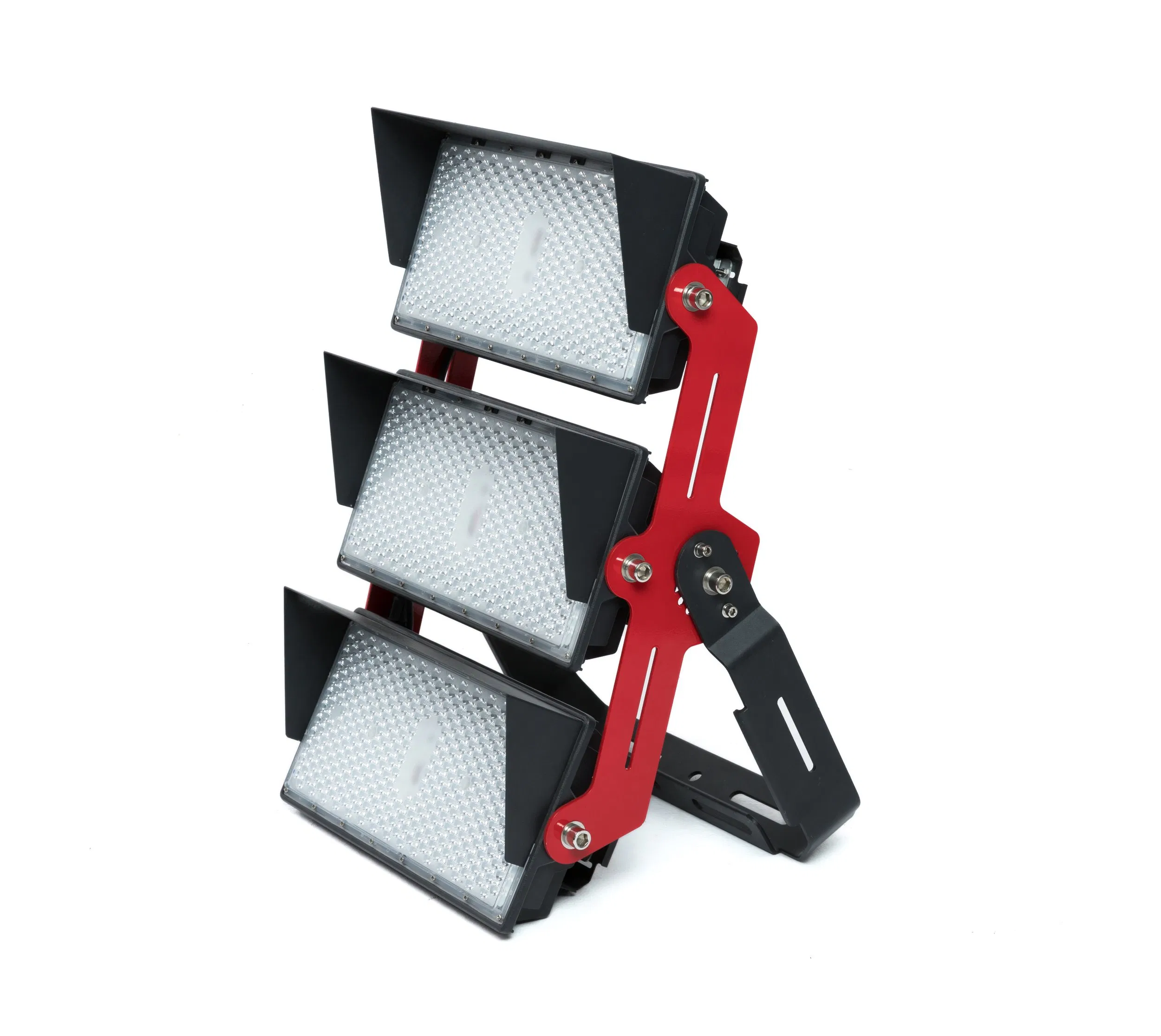

3030SMD LED Stadium Sport Light Football Tennis Court Park Square Tunnel Wharf Projector Lighting

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Specifications
Model NO.
ENM-LL03
Pole Height
25-30m
Power Options
200W - 2000W
Projection
80m Distance
IP Rating
IP65
Input Voltage
220V
LED Brand
Bridgelux
Origin
China
Capacity
30000PCS/Month
💡 Product Presentation

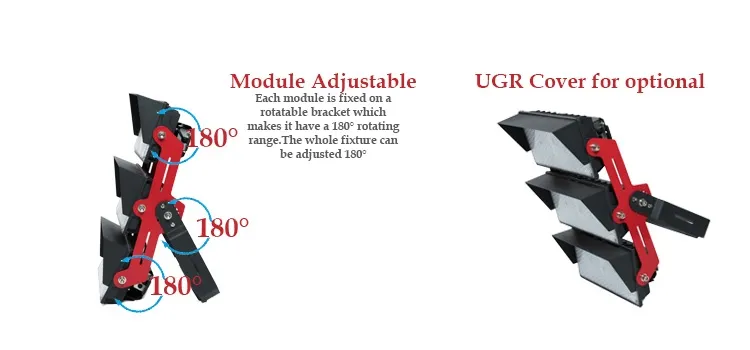

Banner Summary
⚙️ Technical Parameters
Model ENM-LL03-200W/400W/600W/800W/1000W
Input volt 85-305V AC
LEDs + Driver Bridgelux/Samsung/Cree LEDs + Meanwell/ Sosen Driver
Luminous efficiency 170lm/w
CCT 2700K-6500K
Beam angle 25°/40°/80°/120°/30X70°/70X140°
IP rating IP67
CRI 80
Optical cover PC lens
Power factor >85%
Lifespan + Functions 50000Hrs, support 0-10V, Dali system
Warranty 7 years
📖 Understanding Lighting Performance

What is glare?

A dictionary definition describes glare as "difficulty seeing in the presence of bright light such as direct or reflected sunlight, or artificial light such as car headlamps at night", but just to complicate matters, there are different types of glare to consider ranging from mild discomfort to impairment in the ability to see and perform a task.

Discomfort glare

Discomfort glare from a light source or luminaire, where brightness is greater than the eye can adapt to, makes a task uncomfortable to perform. The degree of discomfort depends on several factors: the brightness and size of the source, its position in relation to the line of sight, and the background luminance.

Disability glare

Disability glare is caused by a reduction of contrast which leads to a decrease in visibility. This type of glare describes the situation when the ability to perform is adversely affected, such as driving when the sun is low or towards a vehicle using full beam headlights.

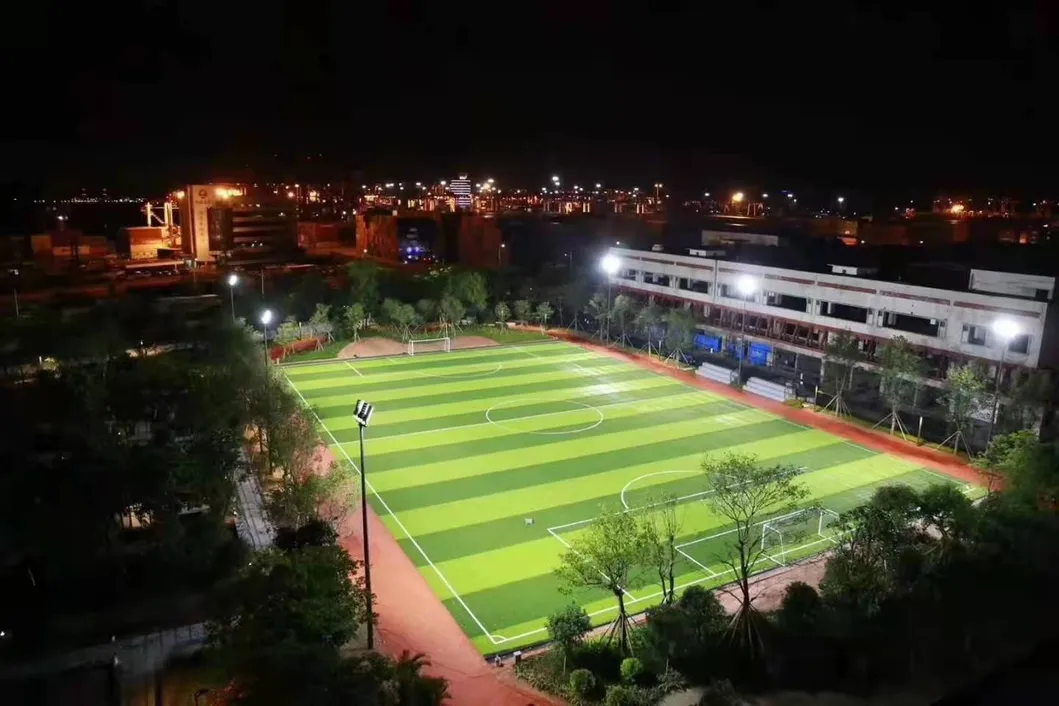

Glare Comparison Example
Frequently Asked Questions
What is the luminous efficiency of these stadium lights?
The system offers high luminous efficiency of 170lm/w, ensuring maximum brightness with lower energy consumption.
What kind of warranty is provided?
We offer a 7-year warranty on this series, covering the Bridgelux/Samsung/Cree LEDs and Meanwell/Sosen drivers.
Is the light suitable for coastal or high-exposure areas?
Yes, with an IP67 rating and professional-grade housing, it is designed for ports, stadiums, and other demanding outdoor environments.
Does this lighting system support smart controls?
Absolutely. The system supports 0-10V dimming and DALI control systems for intelligent light management.
What beam angles are available for specific projects?
A wide range of beam angles is available, including 25°, 40°, 80°, 120°, and asymmetrical options like 30X70° or 70X140°.
