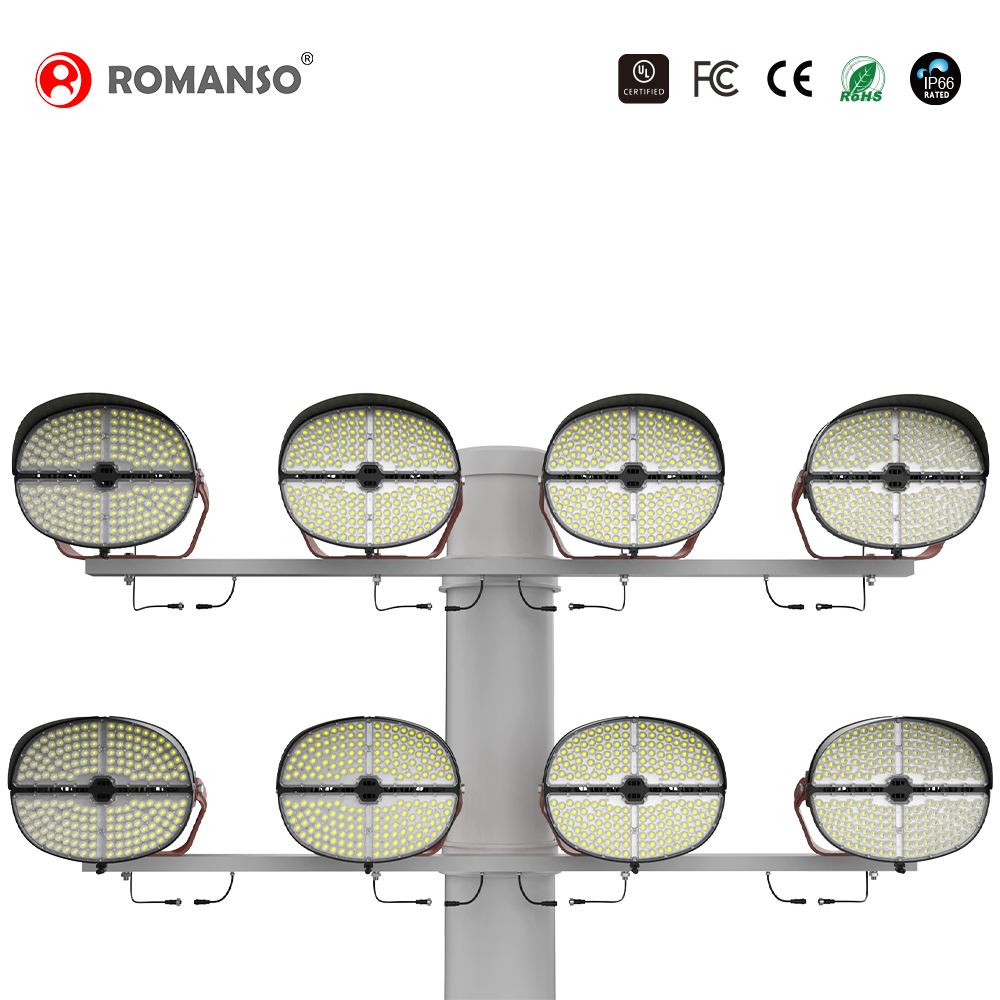

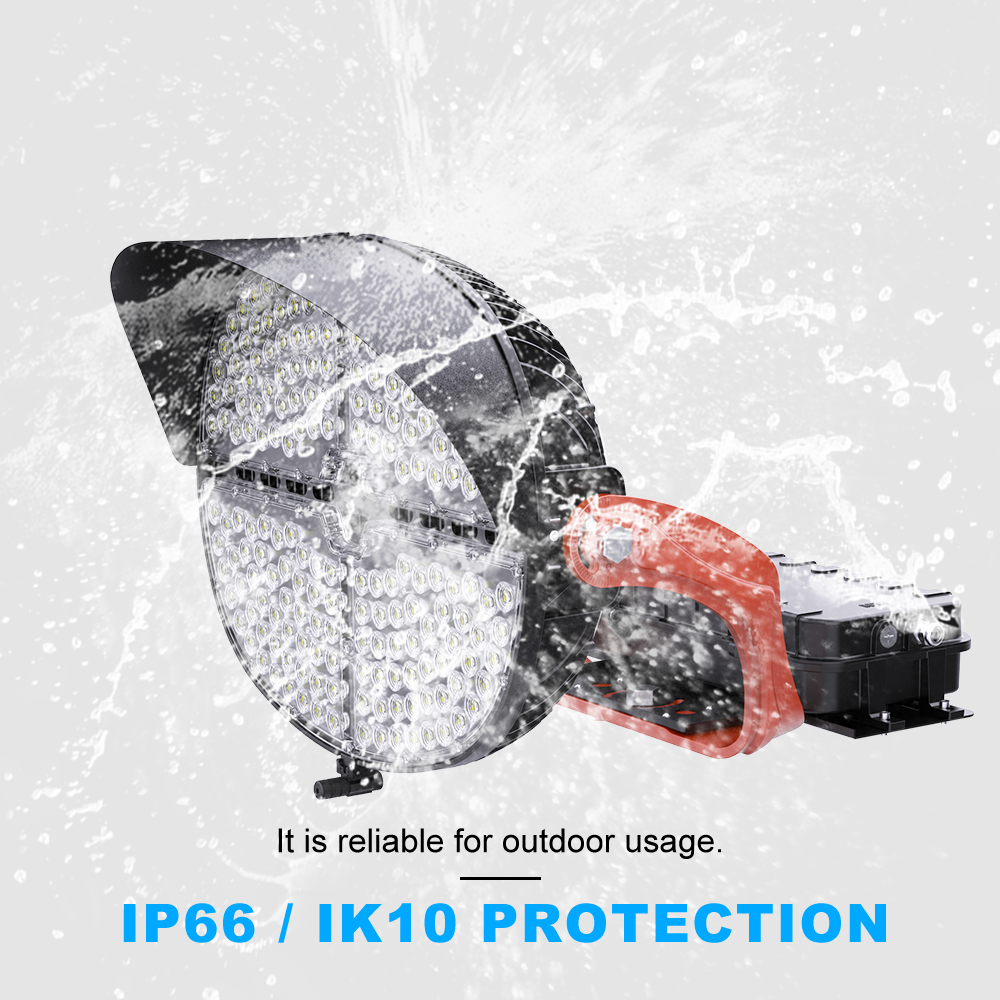

Sealed die-casting profile for outdoor applications. Low profile, compact design minimizes wind load requirements. Housing is completely sealed against moisture and environmental contaminants (IP65).

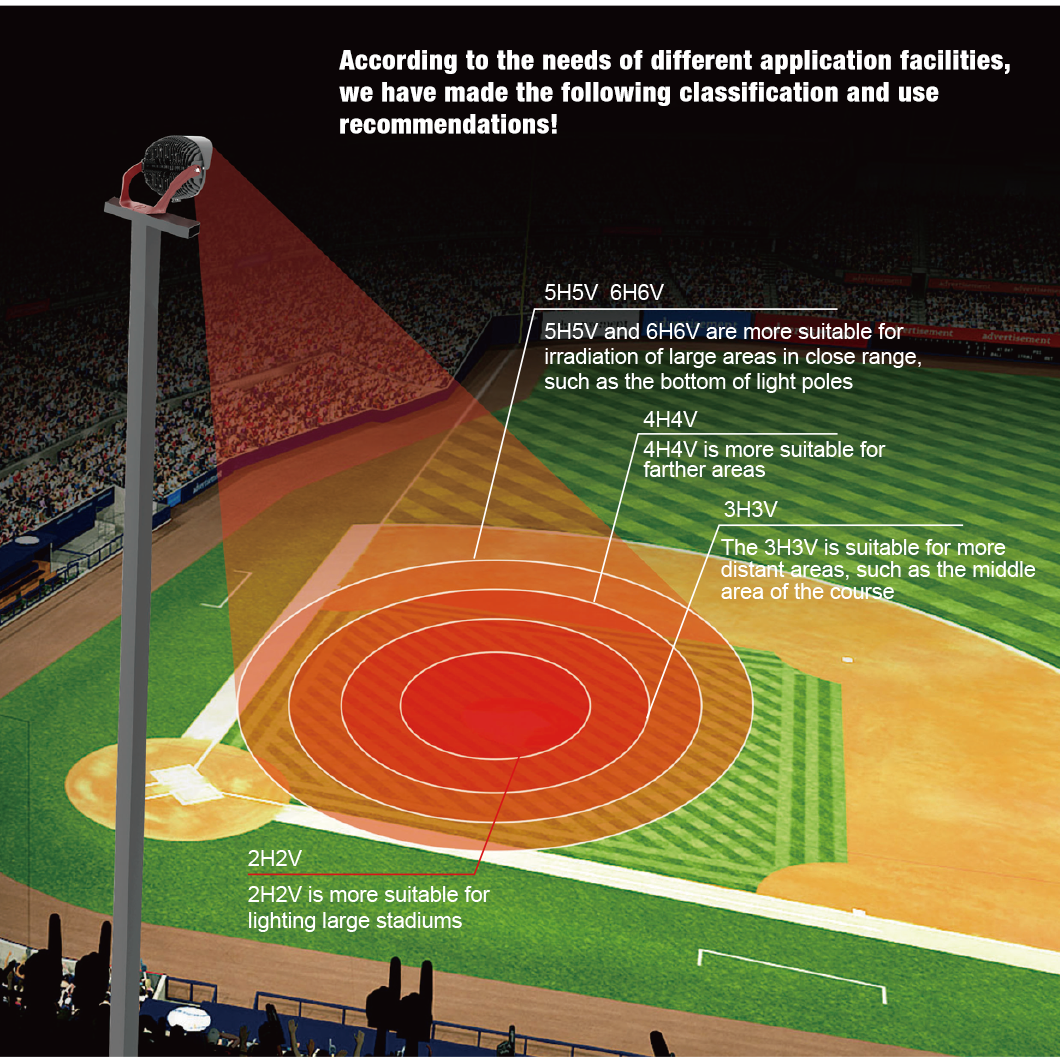

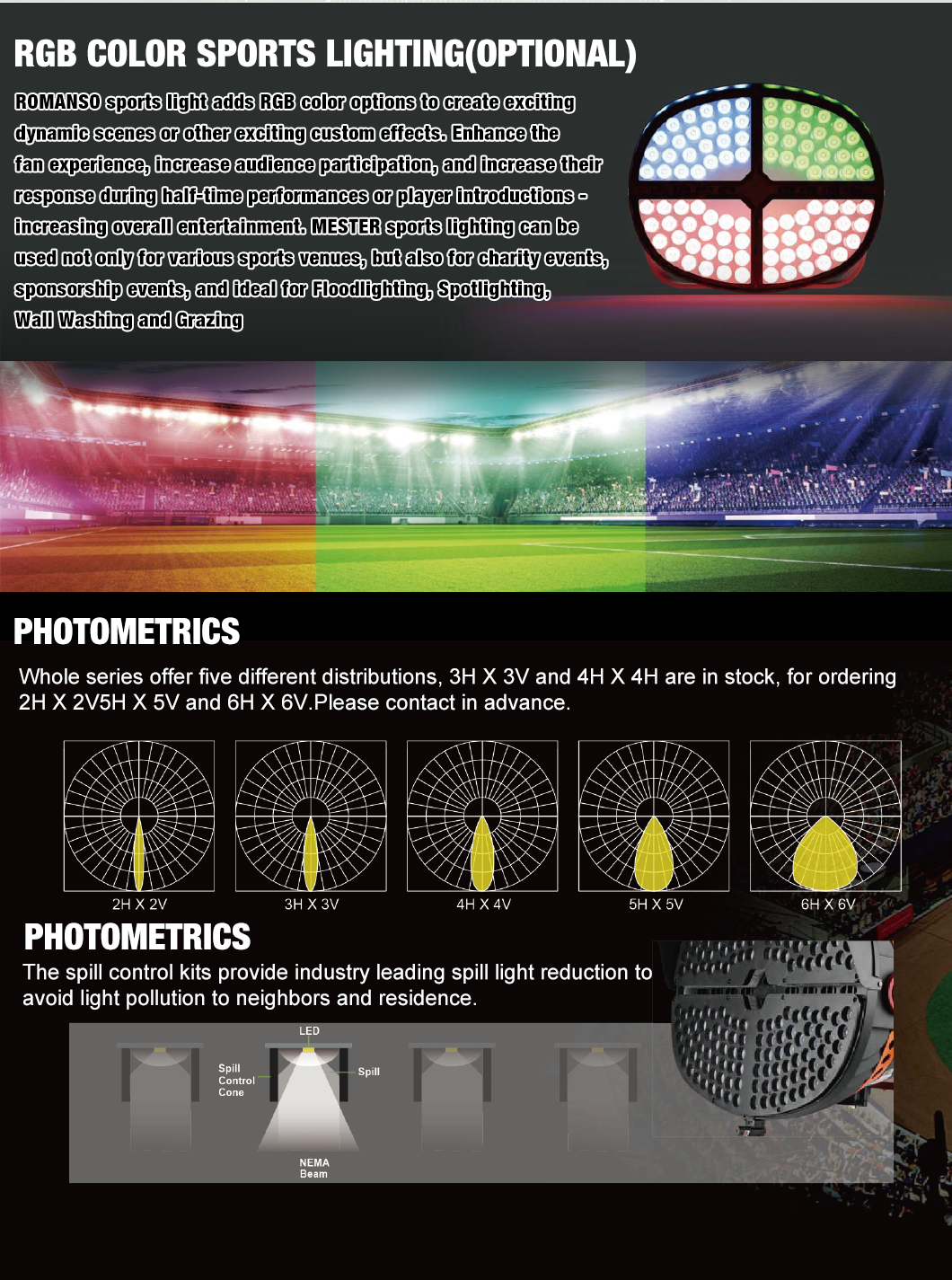

Available in NEMA 2Hx2V, 3Hx3V, 4Hx4V, 5Hx5V, 6Hx6V distributions. Light engines available in standard 4000K, 5000K, and 5700K (70/80/90 CRI). Scalable Lumen Packages from 70,000 to 165,000 Lumens.
Ultra-wide input voltage: 200-480VAC, 120-277V, or 347-480V. Standard 0-10V dimming drivers with built-in surge suppression (max 40KV). THD: ≤ 20%, Power Factor: ≥ 90%.
Operating temperature range: -40℃ to 50℃ (-40℉ to 122℉). Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
| Model Parameter | White LED Configuration | RGB Color LED Configuration |
|---|---|---|
| Wattage | 500W | 600W | 850W | 1200W | 500W |
| Input Voltage | 500W: 120-277V / 347-480V 600W-1200W: 347-480V |
120-277V 347-480V |
| Lumen Output | 68,000 - 160,000 lm | R>12,000 | G>10,000 | B>2,000 |
| LPW (lm/W) | 133-150 | -- |
| CCT / CRI | 4000K-5700K / CRI >70 | RGB |
| NEMA Rating | 2H2V to 6H6V | 3H3V | 4H4V |

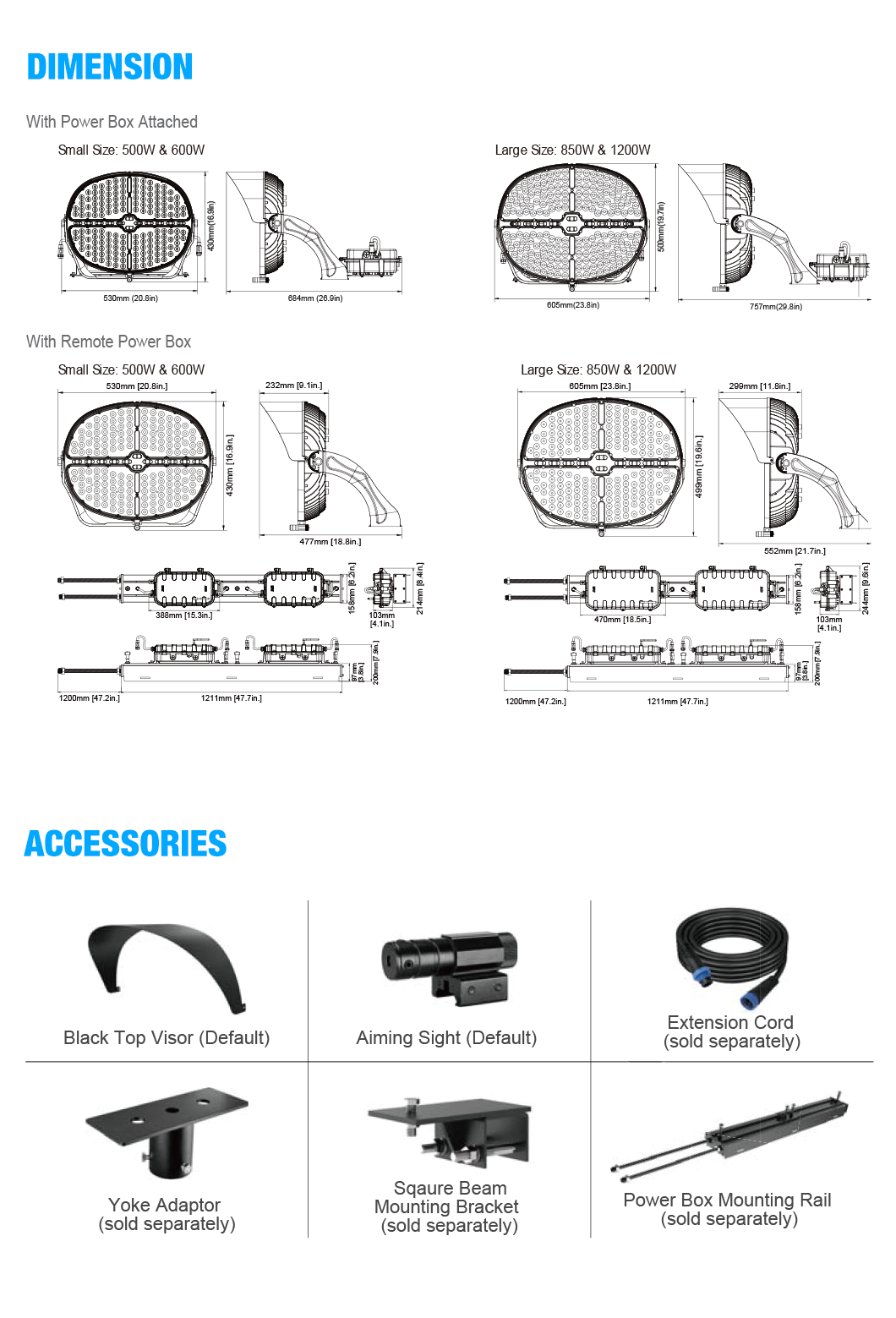

| EPA Rating | Small: 1.9 | Large: 2.5 (sq. ft.) | 1.9 (sq. ft.) |

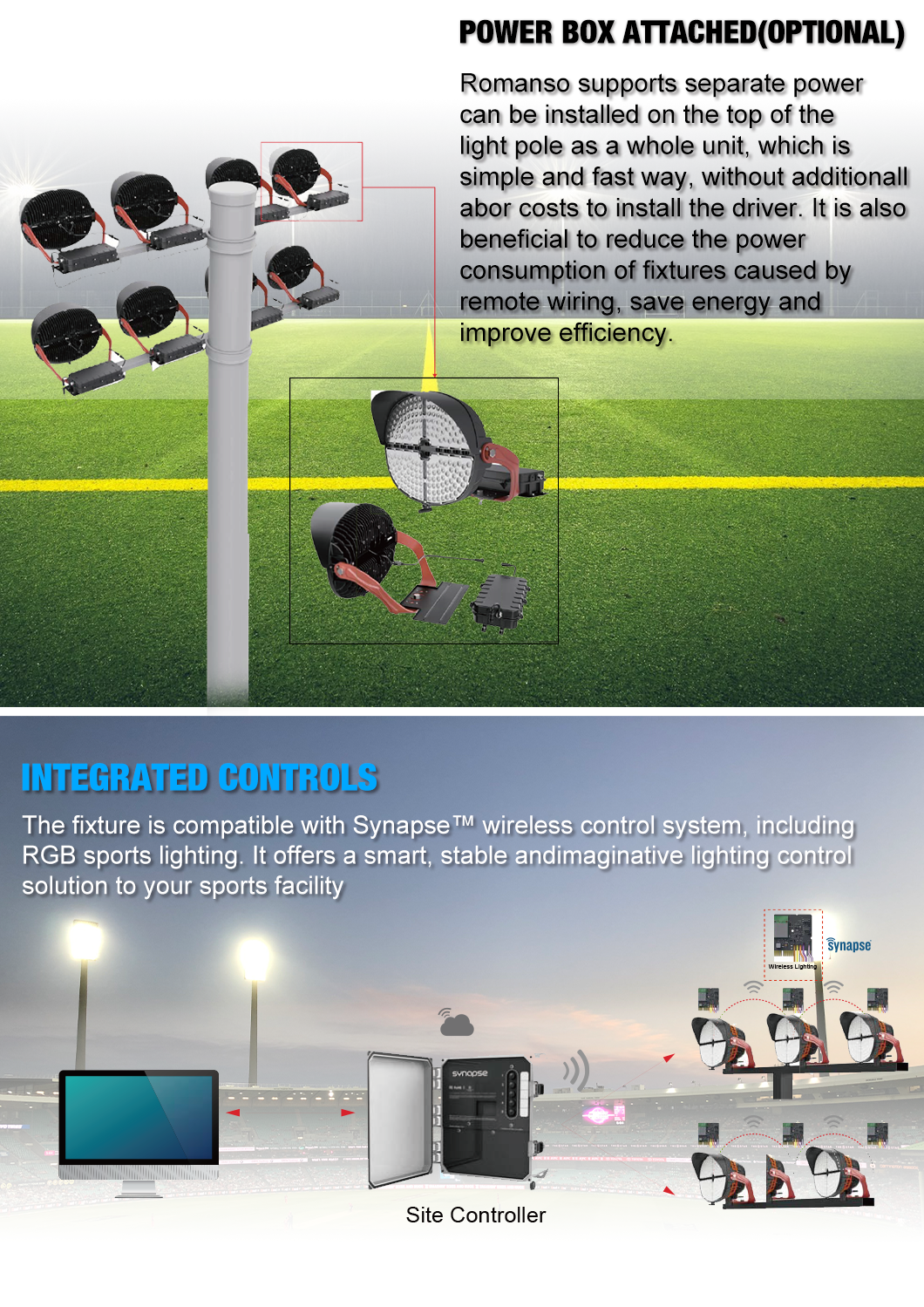

| Advanced Controls | Wireless / DMX / Glare Control | Wired DMX Support |
