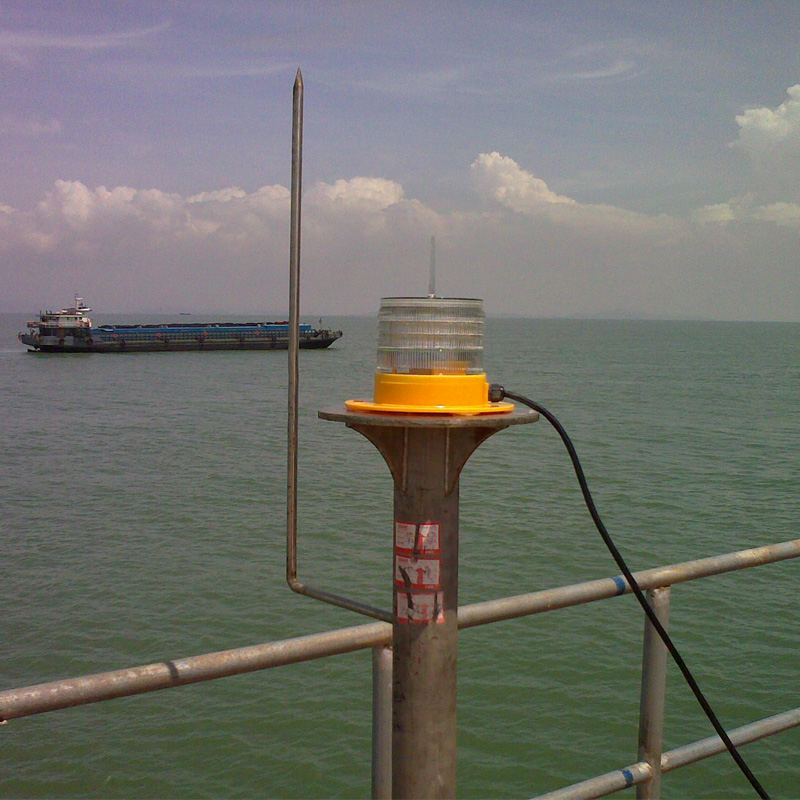

Led Navigation Light With Strong Corrosion Resistance Solar Powered Marine Lanterns

Product Description

📡 Product Description

The navigation light is one of the most advanced LED remote control navigation lights on the market. It uses LED with international brands with external DC power supply. A microprocessor within the marine lantern controls multiple high brightness LEDs.

It uses LED constant current driving technology, high photoelectric conversion efficiency, light intensity and stability. With an advanced lens design, it can focus and increase the line of sight. It is protected from circuit over current, over voltage, under voltage, and high temperature so as to effectively prevent battery consumption and extend LED and battery life. This navigation light can remotely control light flash parameters and monitor status via a GSM module.

Product Name Solar Marine Navigation Lantern Visibility Range About 2-12 nautical miles
Material PC (Polycarbonate) Color White, Red, Green, Yellow, Blue
Part Marine Lantern After Sale Service 2 Years
Size Support Customization Horizontal Range 360°
⚙ Technical Specifications

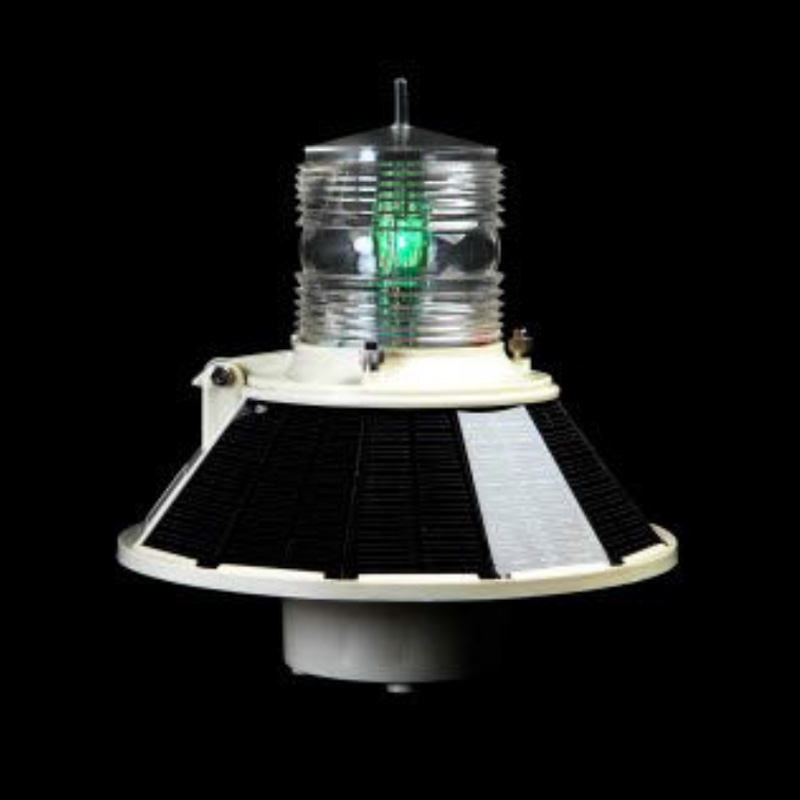

Type: YH90S
YH90S

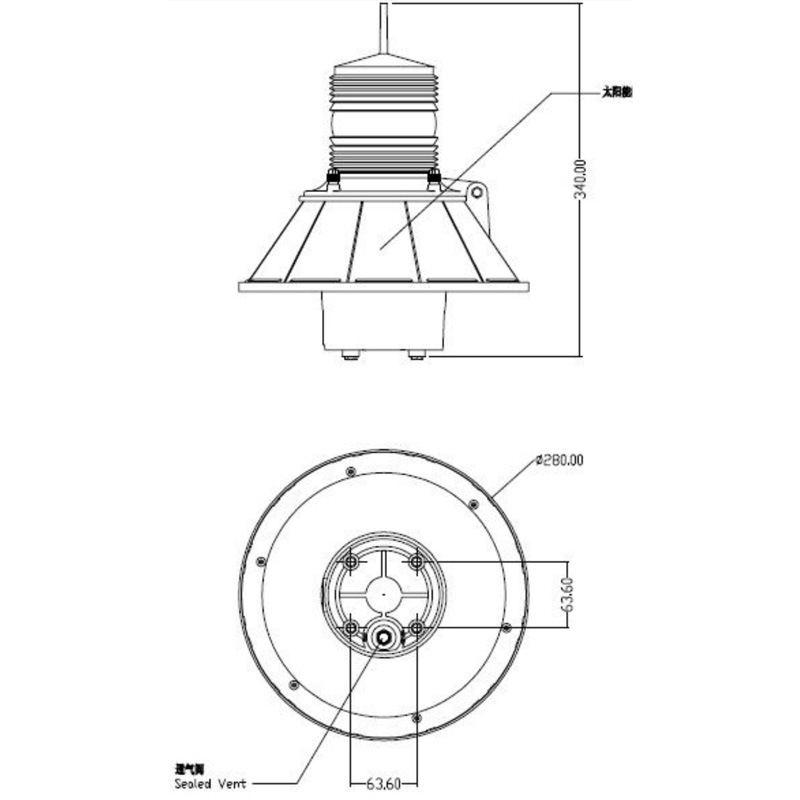

YH90S View
Visible Range3-4nmBattery Capacity3.6V / 15Ah
Light SourceUltra high intensity LEDsSolar Panels7W Monocrystalline silicon
Vertical Divergence>10°WaterproofIP65
LED Life>100,000 hoursService Life>5 years

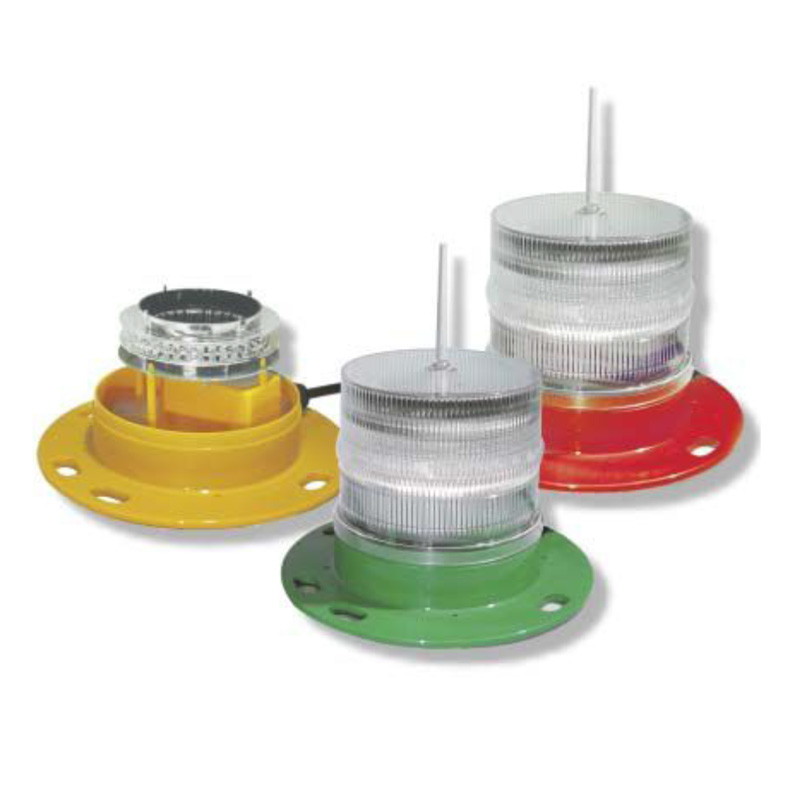

Type: YH125
YH125

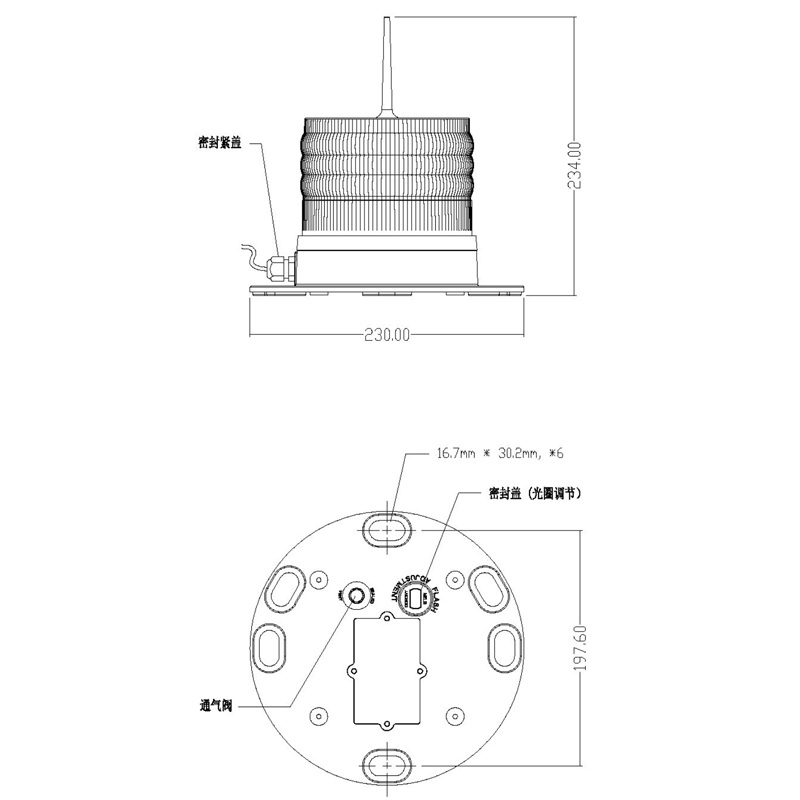

YH125 Detail
Visible Range3-7nmRated Voltage12V
Intensity Levels25%, 50%, 75%, 100%WaterproofIP68
Vertical DivergenceService Life>10 years
Type: YH125S

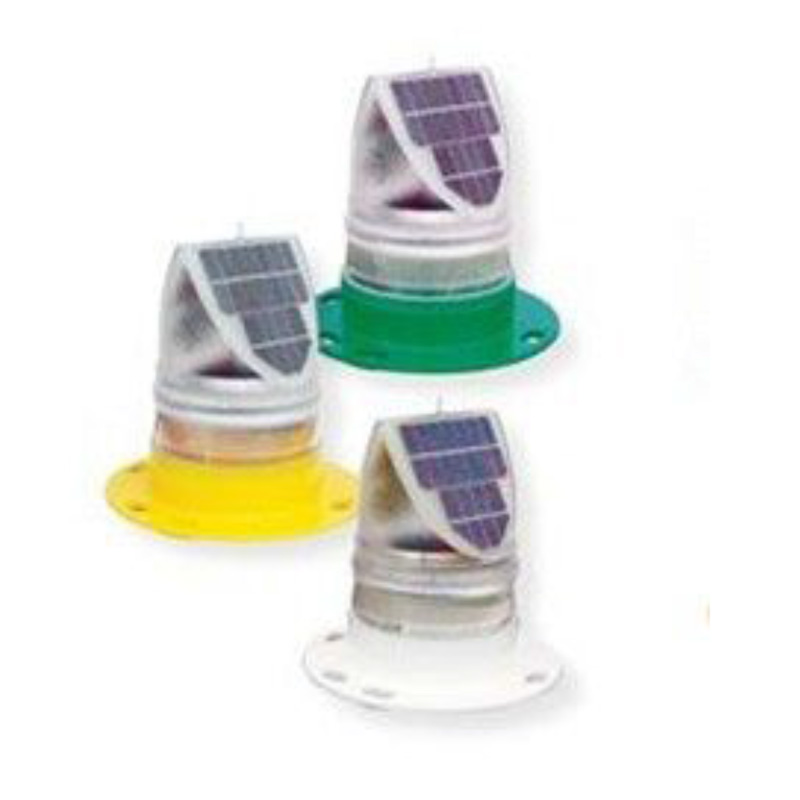

YH125S

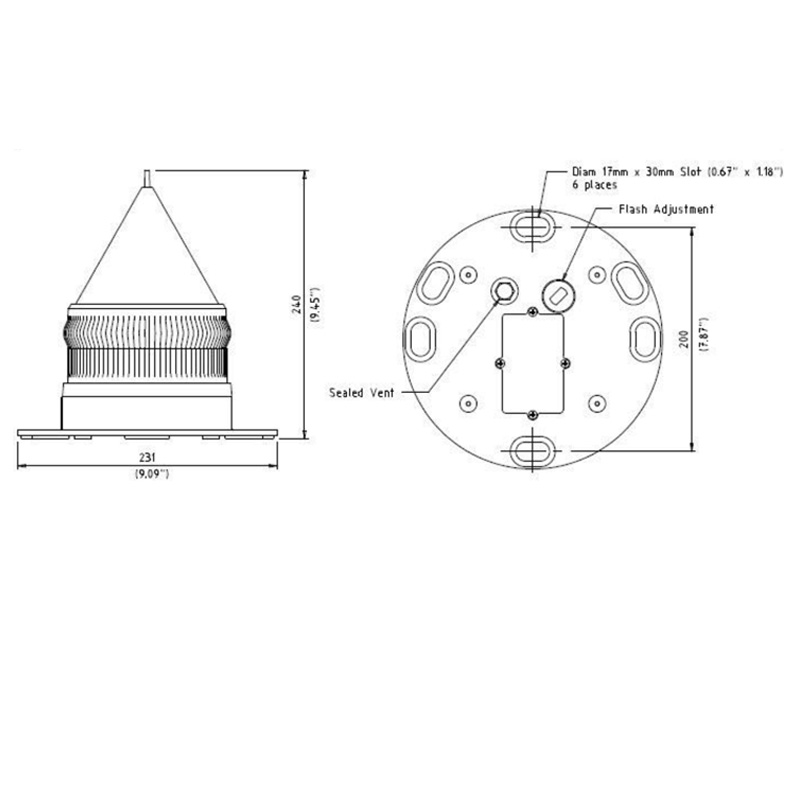

YH125S Side
Visible Range2-3nm+Solar Panels2W Monocrystalline
Battery Capacity3.6V / 4400mAhWaterproofIP68

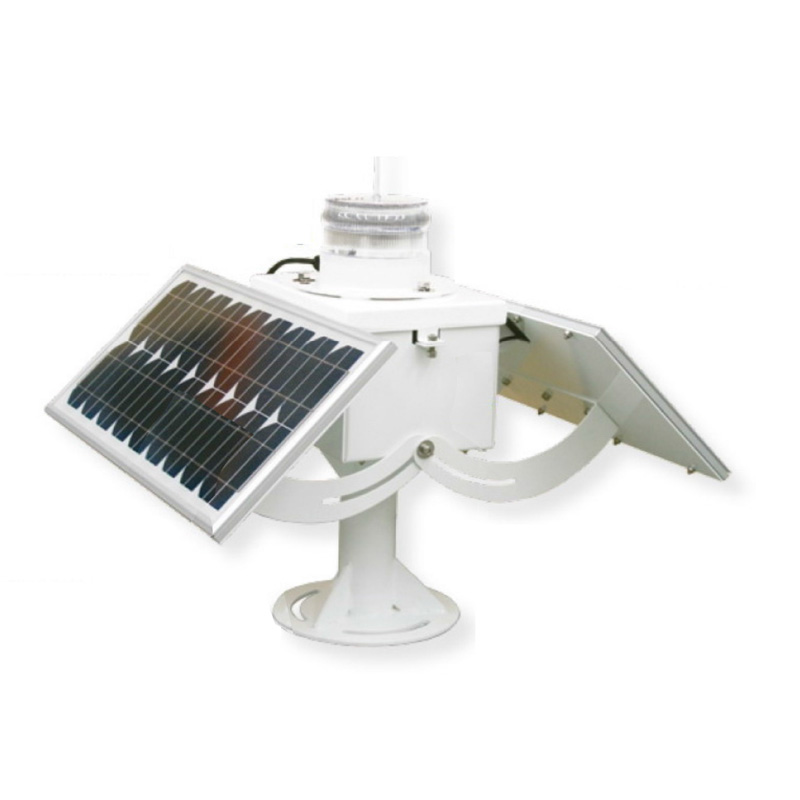

Type: YH155A
YH155A

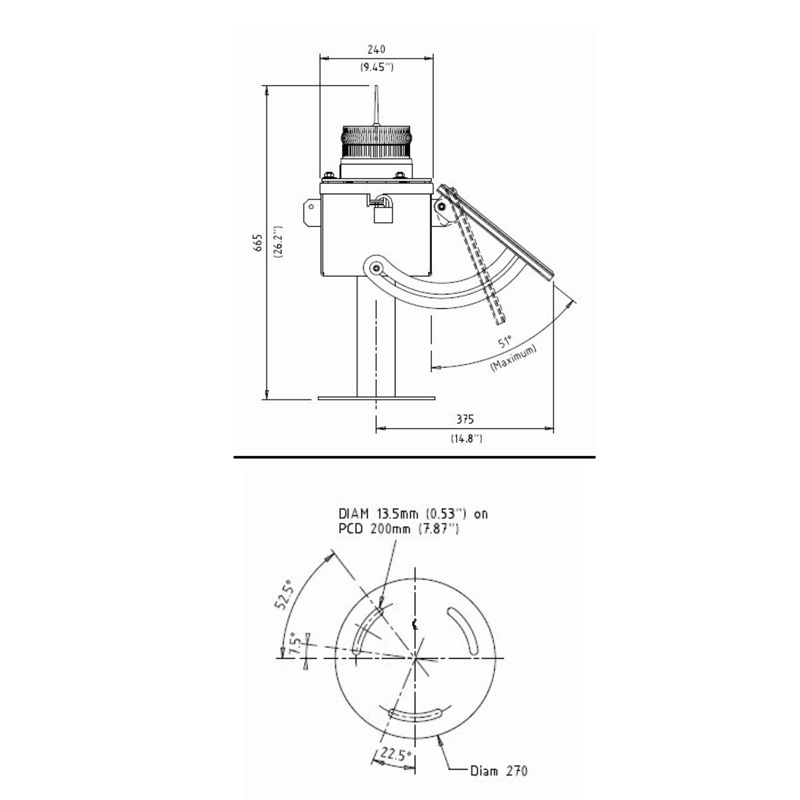

YH155A Structure
Visible Range5-9nm+Solar Module2*40W Max
Battery TypeMaintenance-free lead-acidBattery Capacity100Ah Max
WaterproofIP68 (Head) / IP65 (Battery)Height665mm

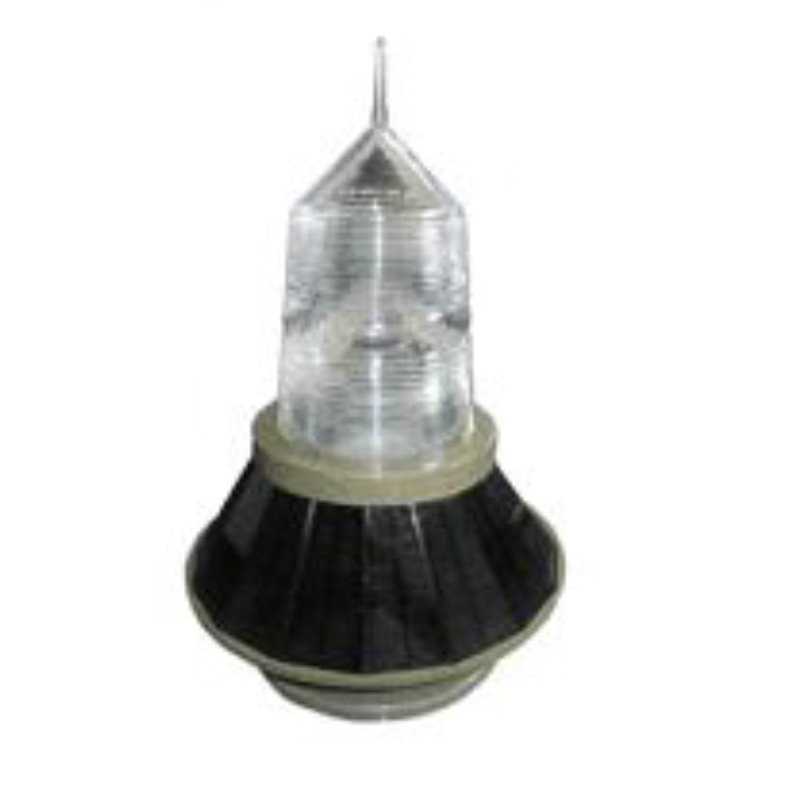

Type: YH155S
YH155S

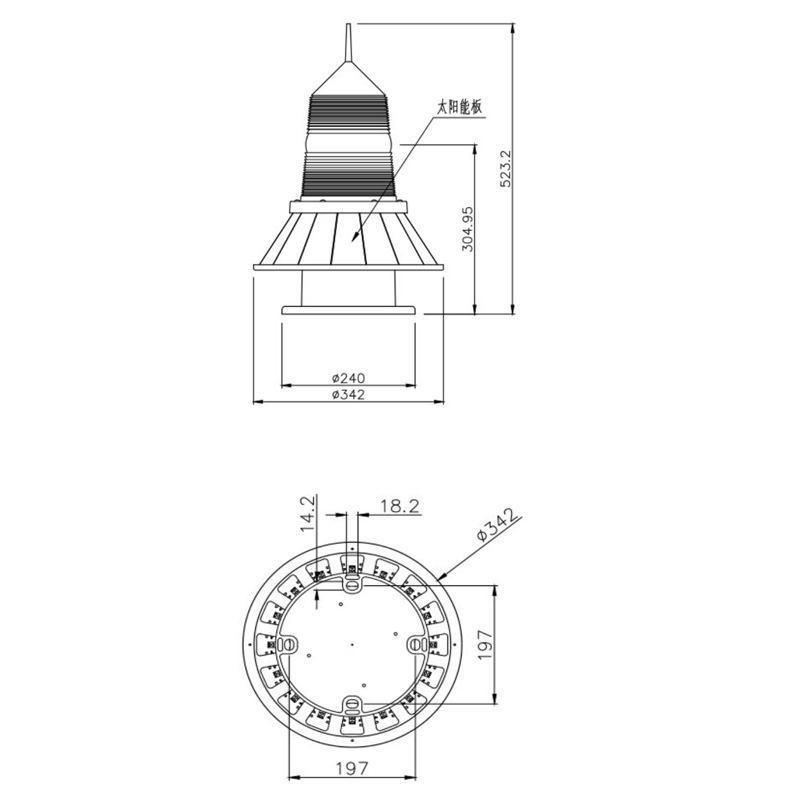

YH155S View
Visible Range3-4nmSolar Panels11W
Battery Capacity3.6V / 52AhNet Weight3kg
✨ Key Features
  • LED array available in 1, 2, or 3 tier configurations (36 LEDs per tier).
  • 100,000 hours ultra-long LED service life.
  • 256 IALA recommend flash codes.
  • High efficiency LED driver circuit with adjustable intensity.
  • IP68 waterproof rating for extreme marine environments.
  • Integrated over-voltage, over-current, and reverse polarity protection.
  • Internal ambient lighting detector for automatic operation.
  • Optional Synchronization via GPS module.

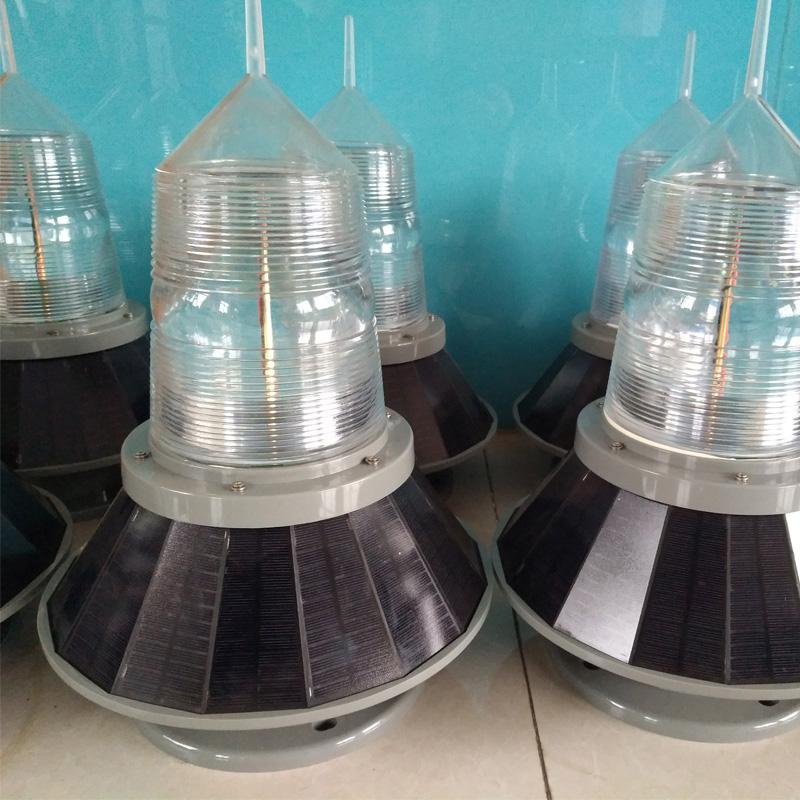

📷 Product Gallery & Certificates
Gallery 1

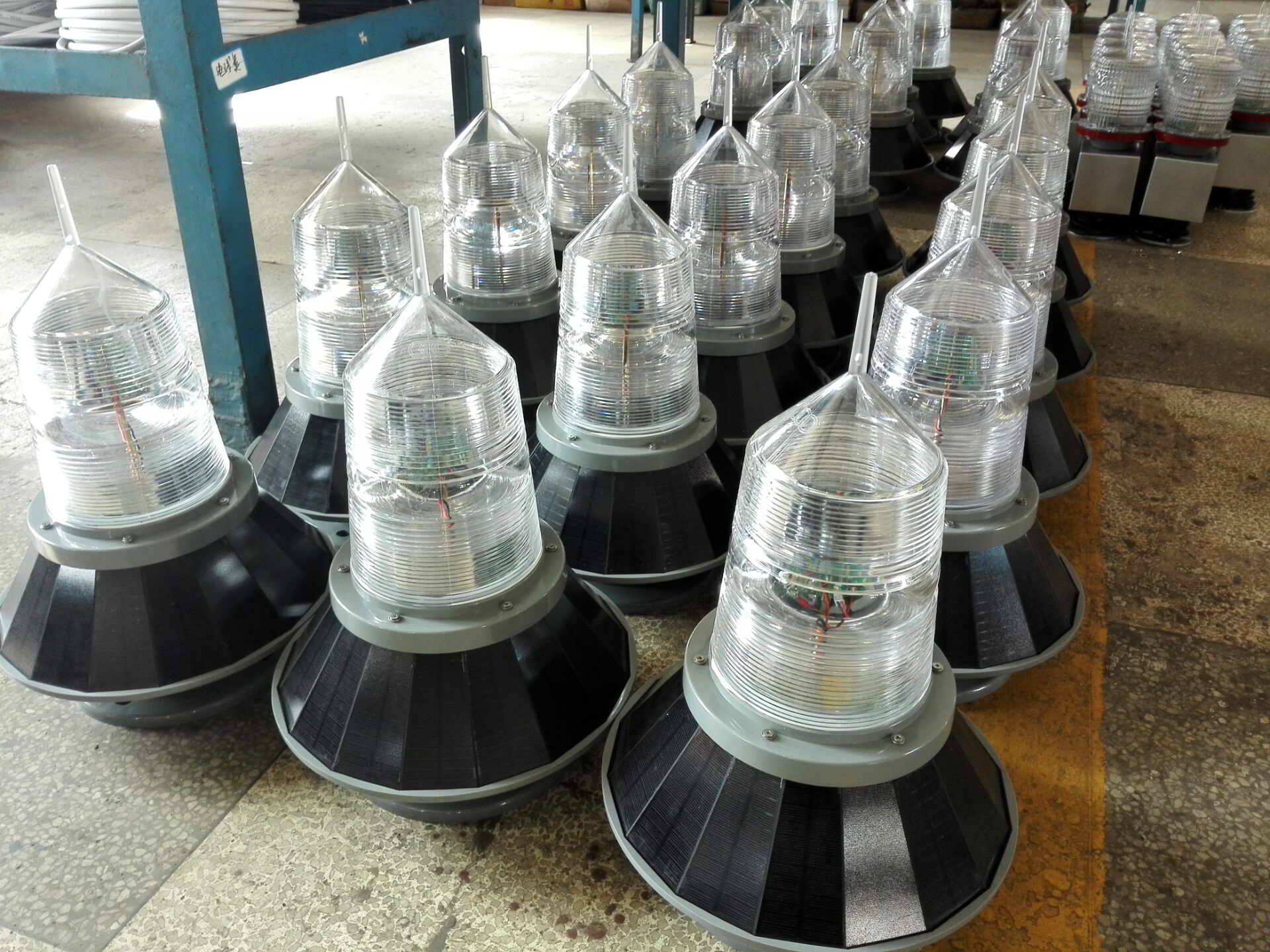

Gallery 2

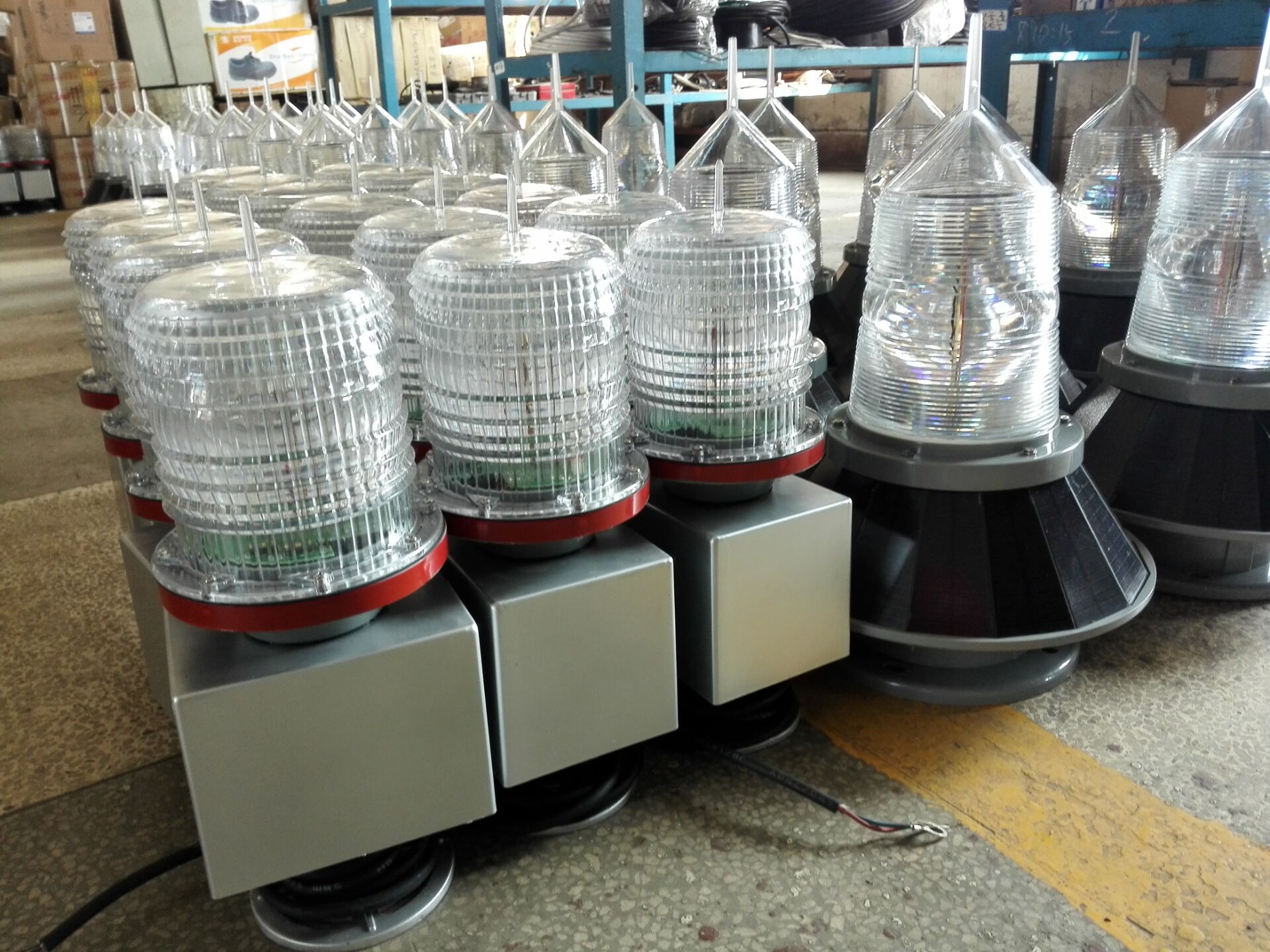

Gallery 3

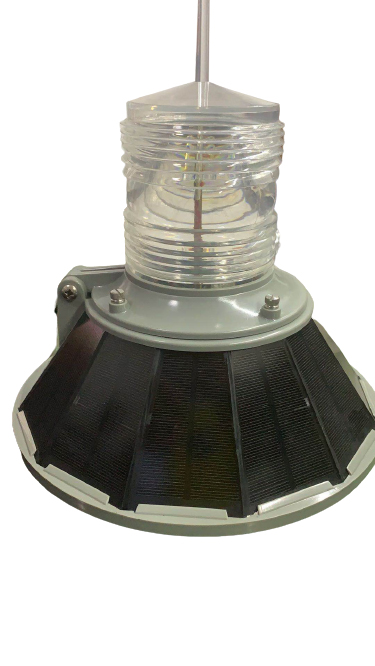

Detail 1

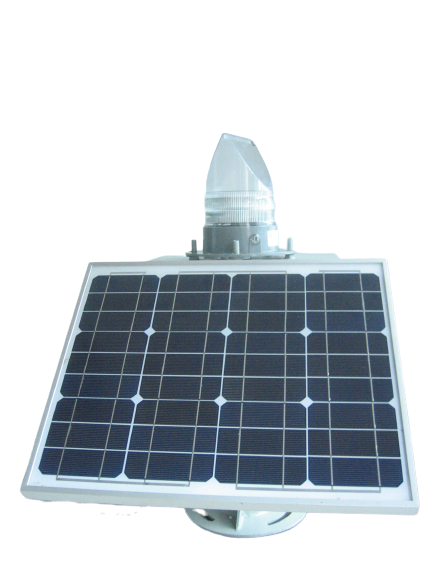

Detail 2

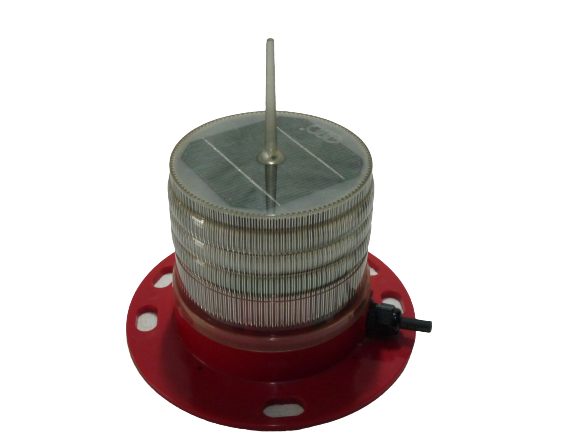

Detail 3

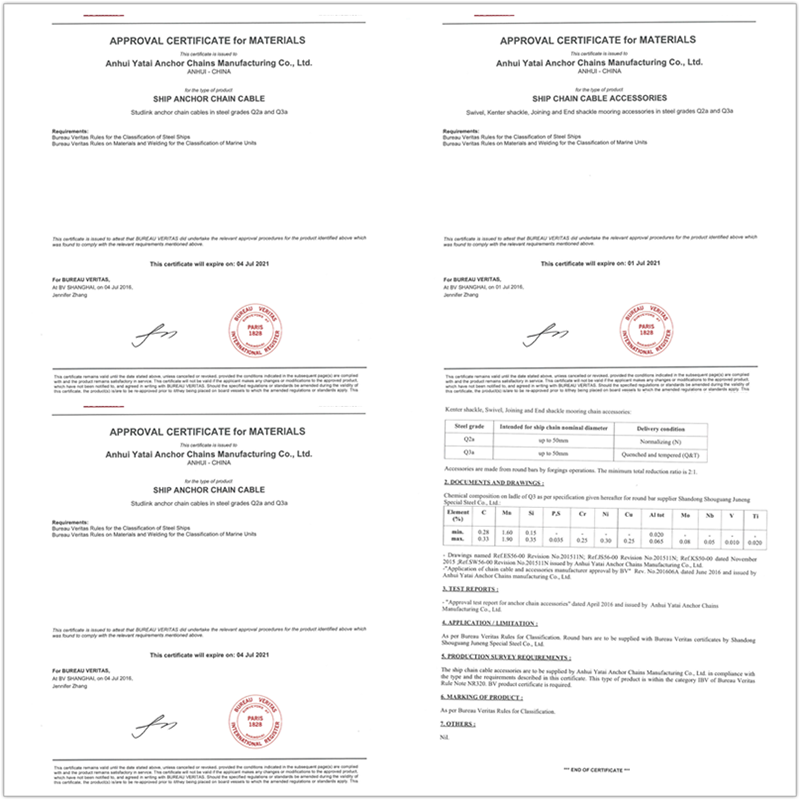

Certificate 1
Certificate 2

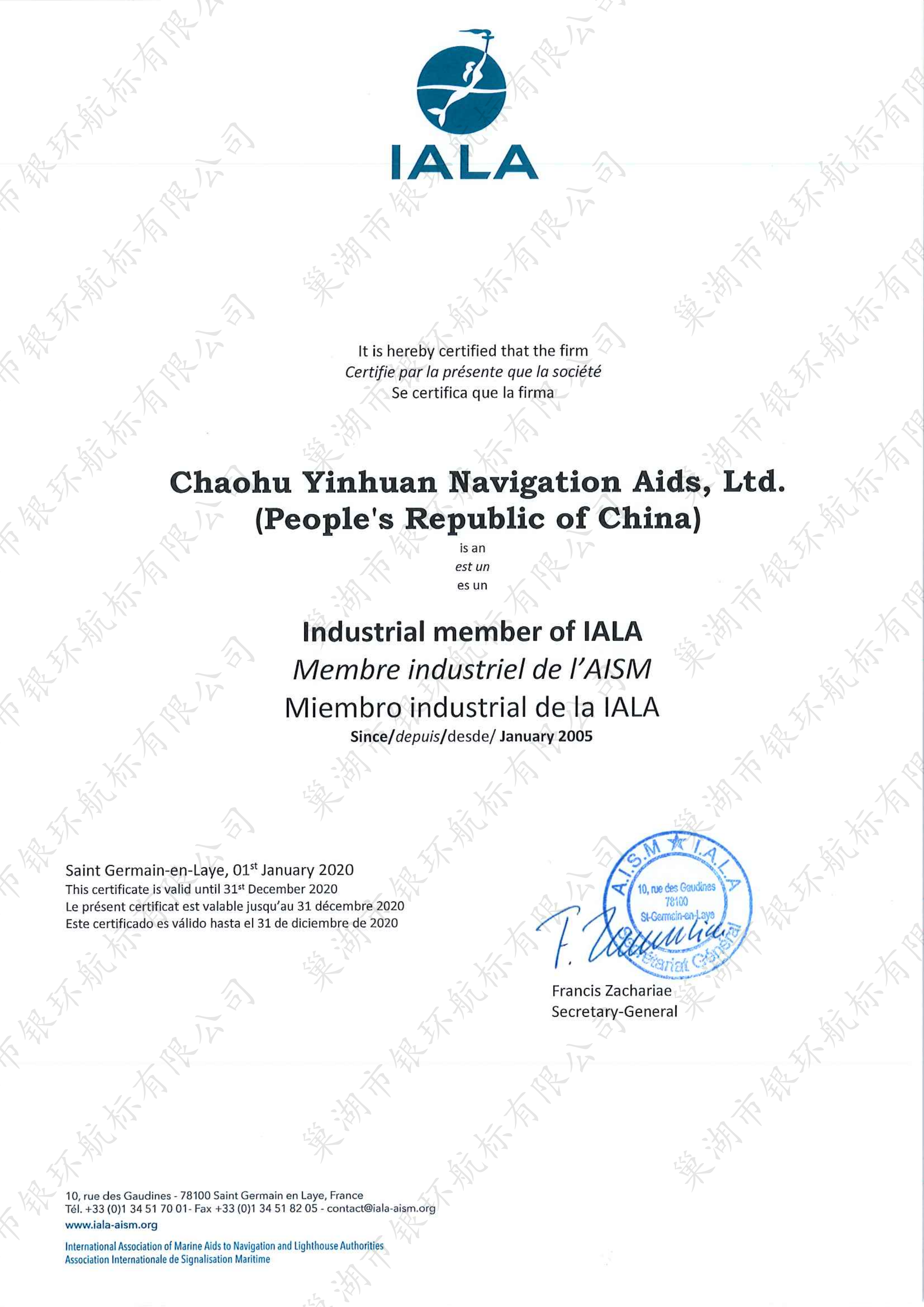

Certificate 3
📦 Packing & Shipping

Cargo Packaging: All products are professionally packed to ensure safe transit during international shipping.

Packaging 1
Packaging 2
Packaging 3

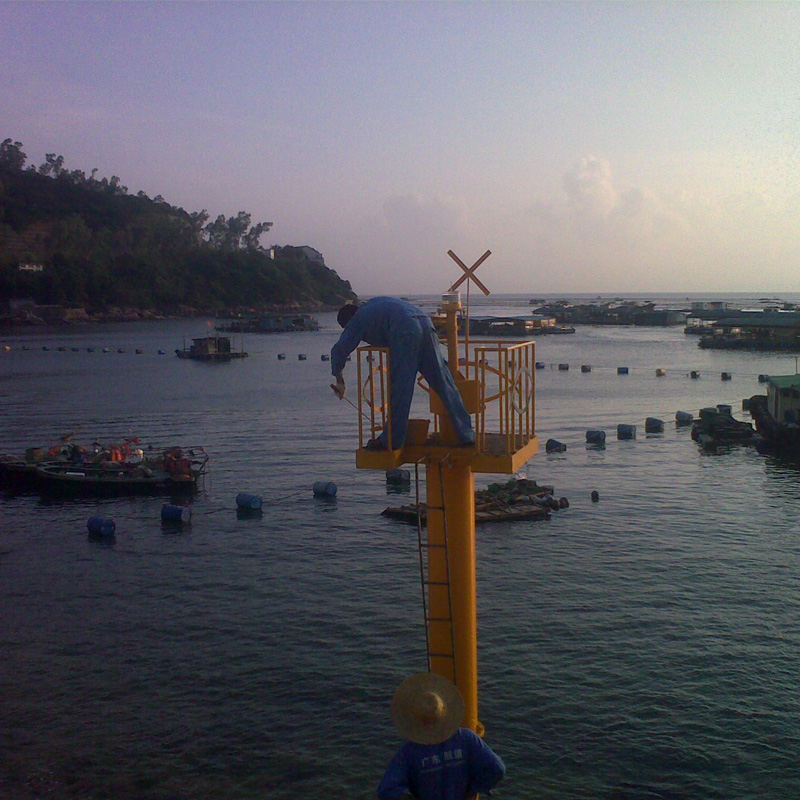

Field Application & Customer Photos
Customer Photo

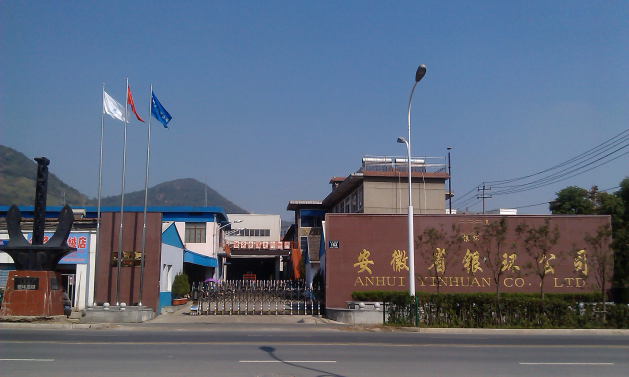

Field Use 1
Field Use 2
❓ Frequently Asked Questions
1. What is the typical visibility range of these navigation lights?
The visibility range varies by model, ranging from 2 nautical miles for smaller units up to 12 nautical miles for high-intensity solar marine lanterns.
2. What color options are available for the LED lights?
We provide a full range of IALA-compliant colors, including Red, Green, White, Yellow, and Blue to meet various navigation requirements.
3. How long is the expected service life of the LEDs and the units?
The LEDs are rated for over 100,000 hours. Depending on the specific model, the overall service life of the navigation light is between 5 to 10 years.
4. Are these lights suitable for extreme weather and water exposure?
Yes, our lights feature IP65 to IP68 waterproof ratings. They are constructed with Polycarbonate and UV-stabilized materials to withstand temperatures from -40°C to +85°C.
5. Can the flash characters be customized?
The lights come with 256 IALA recommended flash codes. Parameters can be remotely controlled and monitored via an optional GSM or GPS module.
6. What is the warranty period and delivery time?
We offer a 2-year warranty after delivery. The typical delivery period is within 15-20 days.
