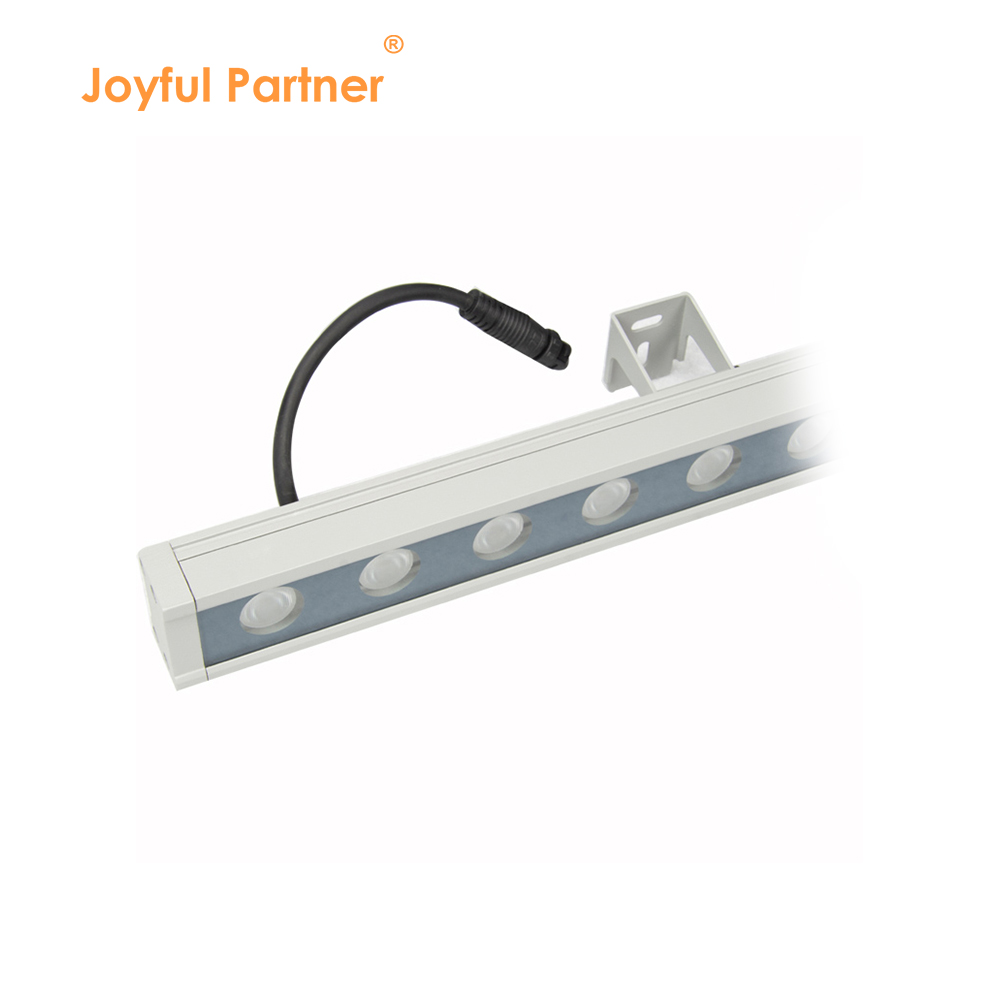

High Voltage 110V 220V Wall Washer City Color Light Smart 9WLED Building Facade Wall Washer Lighting

Product Description

High Voltage Wall Washer
High Voltage 110V 220V Wall Washer City Color Light Smart 9W LED Building Facade Wall Washer Lighting
Products Description
Color Temperature Single Color
Rated Power 9W/18W/24W/36W/48W/108W
Input Voltage DC24V / 110V / 220V Options
Optional Light source/lens
Lens Angle 10*65°
Material of Fixture Aluminum
Cover Material Glass
Anti-glare Baffle Optional Yes
Working Temperature -30°C to 55°C
Appearance Color Grey / Iron grey
Average Lifespan 50,000 hours
Initial Luminous Flux 1400 lm / 1900 lm
Control Method Normally on / DMX512

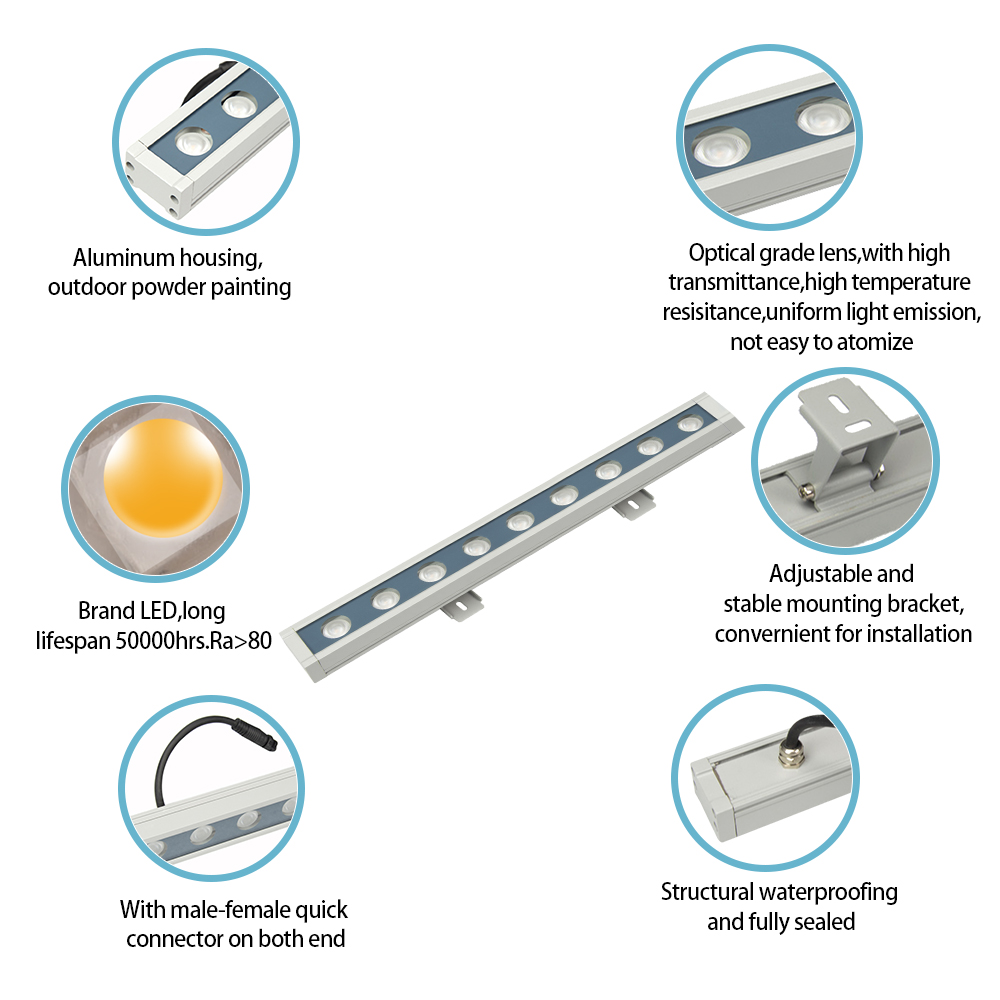

Aluminum Housing: Outdoor powder painting for superior durability.
Optical Grade Lens: High transmittance and temperature resistance; uniform light emission without atomization.
Premium LED: Brand LED chips with long lifespan of 50,000hrs and Ra > 80.
Adjustable Bracket: Stable mounting bracket convenient for various installation requirements.
Easy Connection: Equipped with male-female quick connectors on both ends.
Waterproof Design: Structural waterproofing and fully sealed for outdoor reliability.

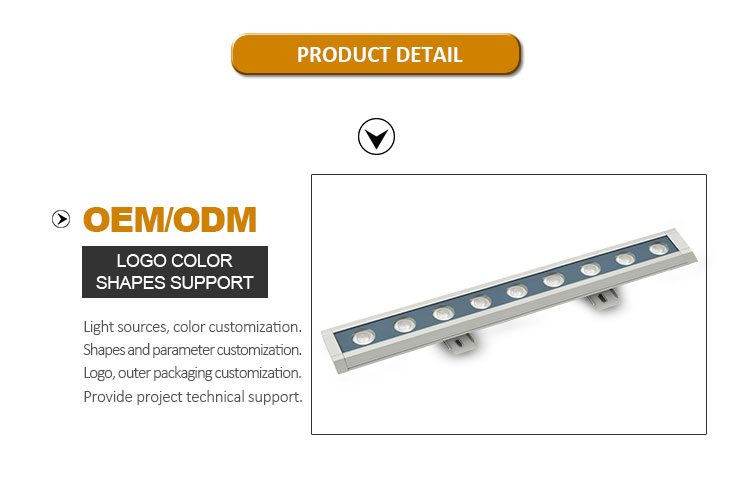

LED Wall Washer Detail

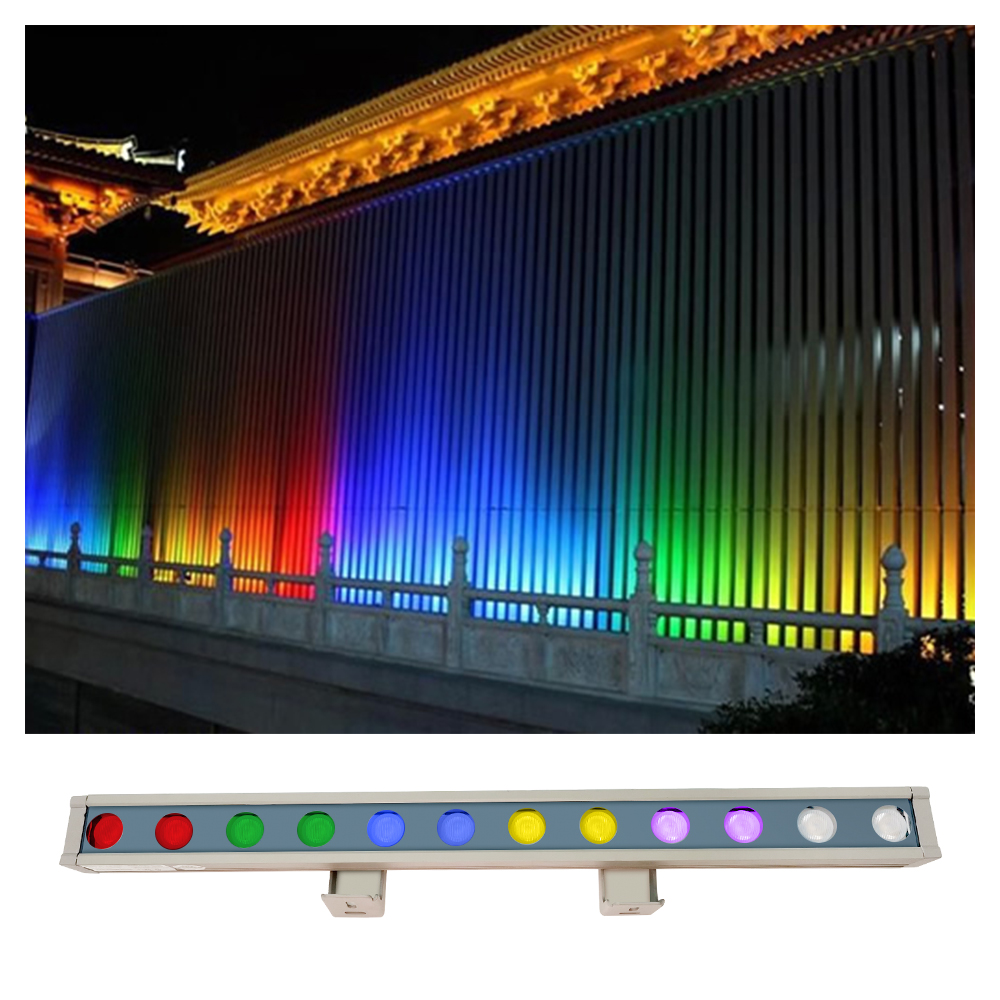

Lighting Effect

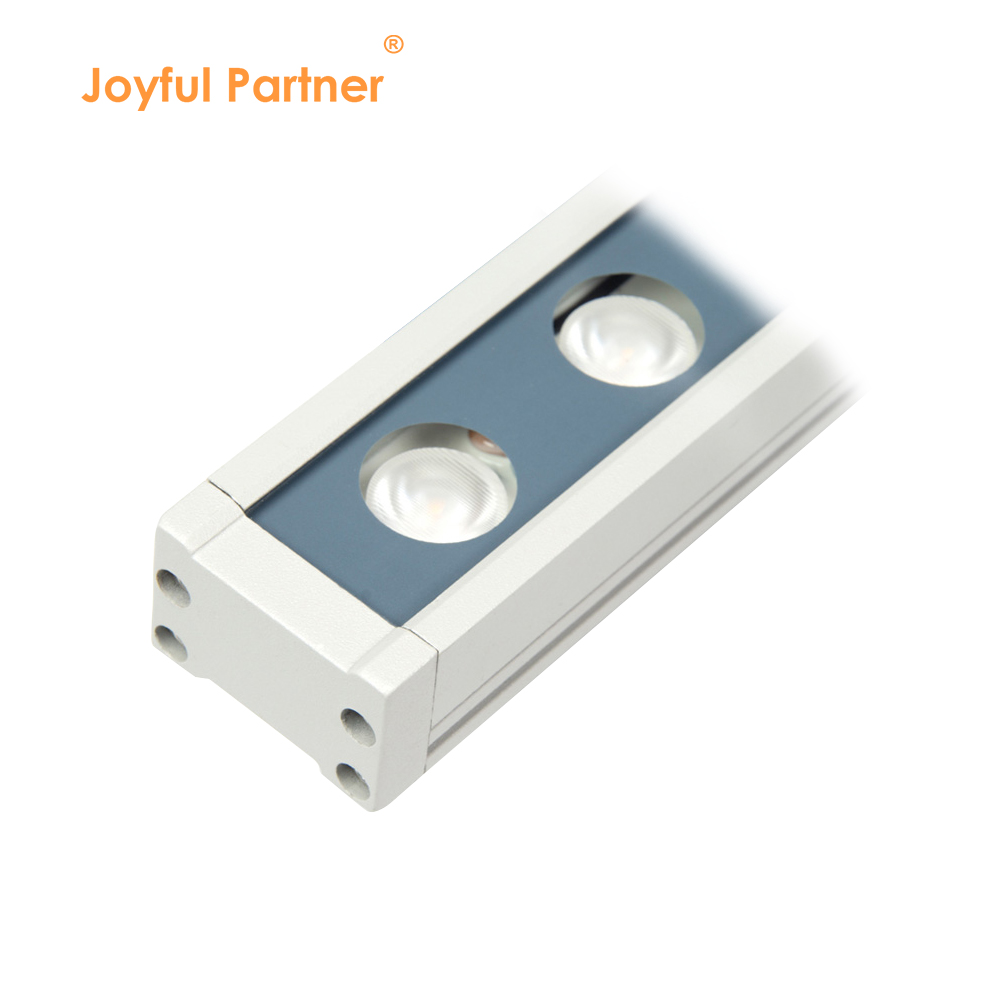

Installation View 1

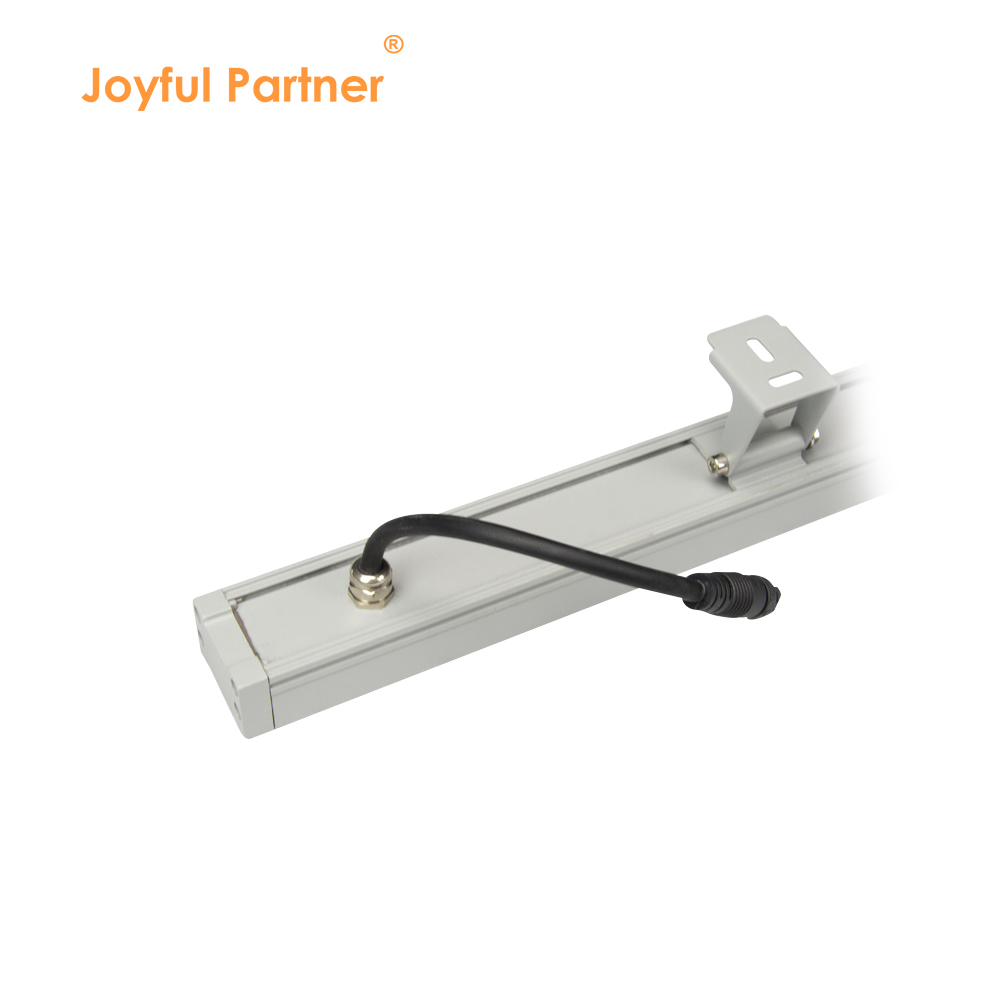

Installation View 2

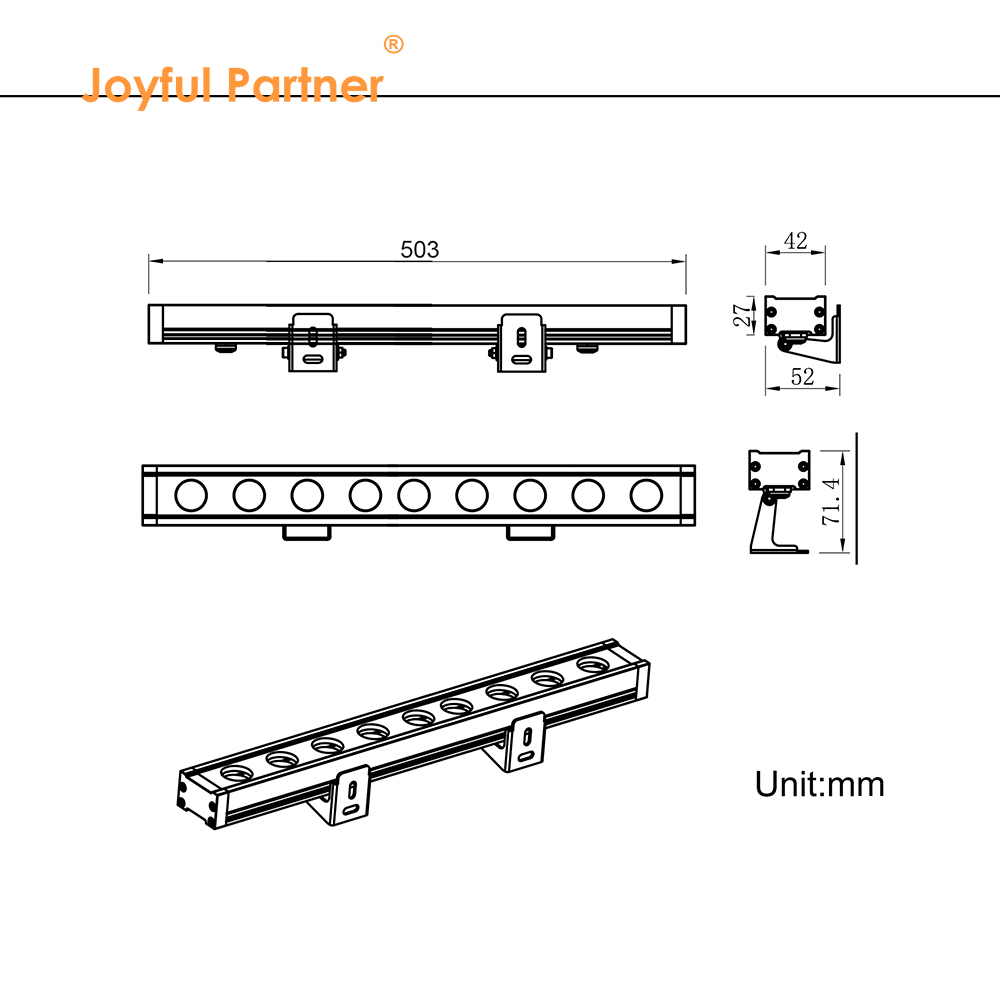

Product Dimensions

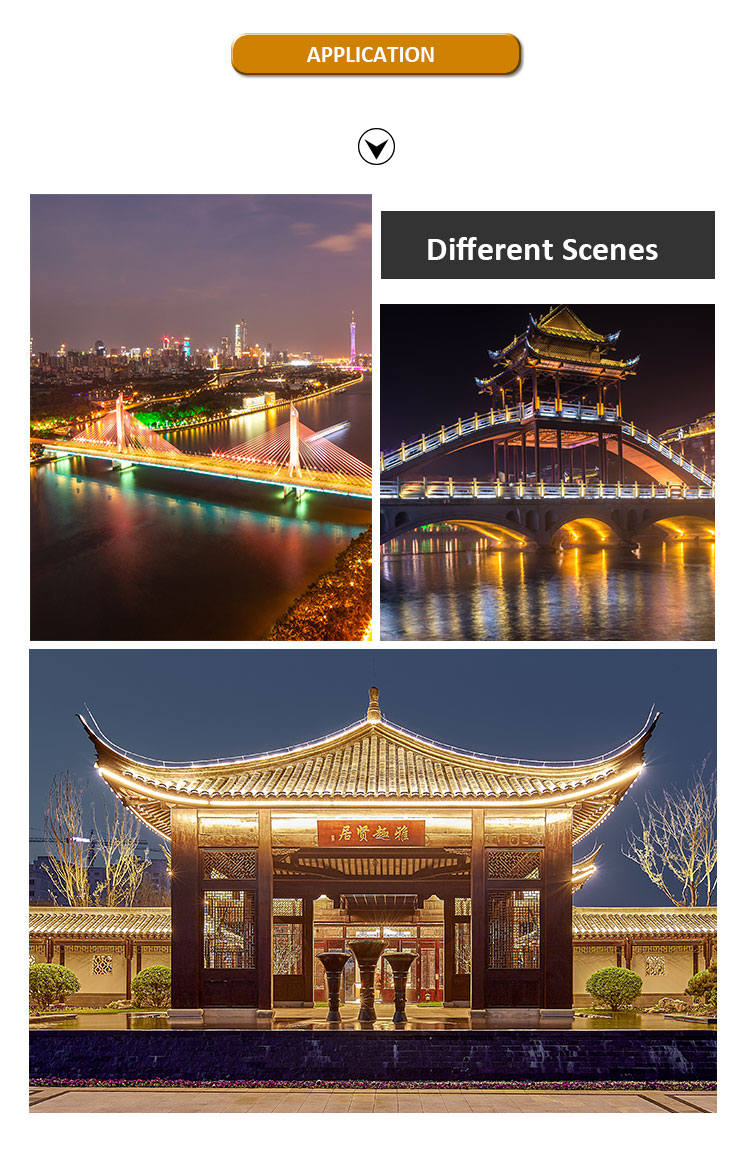

Facade Lighting Project
Production & Application
Factory Overview
Quality Control
Testing Lab
Stock & Inventory
Global Certificates
FAQ
Q1: What voltages are supported by this wall washer?
A1: Our wall washers support DC24V, 110V, and 220V input options to accommodate different building electrical systems.
Q2: Can this light be controlled via DMX512?
A2: Yes, the lighting supports both standard "normally on" mode and DMX512 control for dynamic color-changing effects.
Q3: Is the product suitable for extreme outdoor weather?
A3: Absolutely. It features structural waterproofing, a fully sealed design, and a working temperature range of -30°C to 55°C.
Q4: What materials are used in the construction?
A4: The fixture is made of high-grade aluminum with outdoor powder painting and a tempered glass cover for maximum durability.
Q5: What is the expected lifespan of the LED source?
A5: We use premium brand LEDs with an average lifespan of approximately 50,000 hours.
Q6: Are there different power options available?
A6: Yes, we offer various power ratings ranging from 9W up to 108W to suit different facade heights and lighting requirements.
